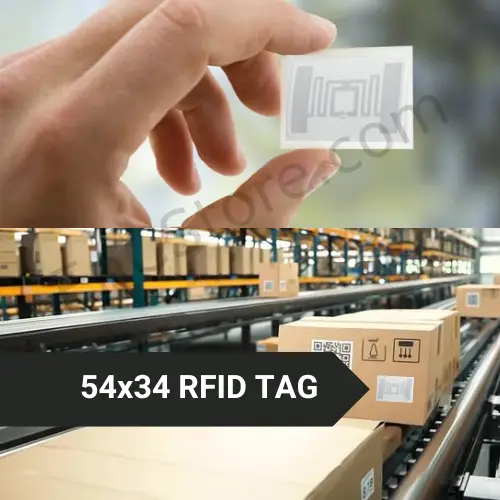

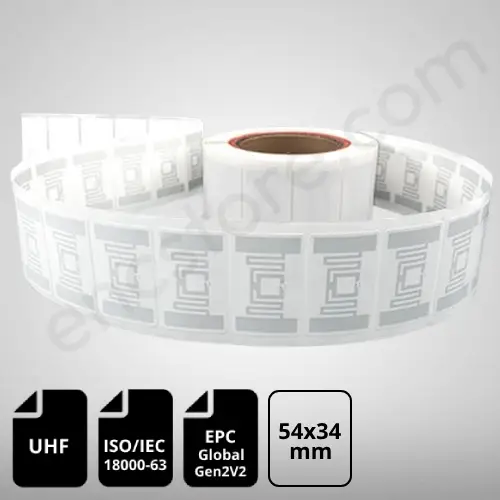

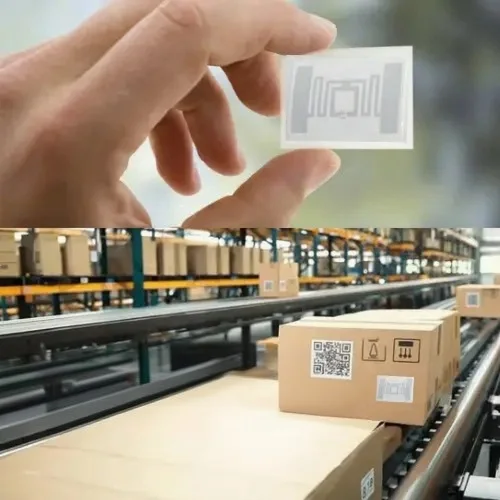

The 5434-UHF RFID Paper/Polyester Asset Tags & Labels offer high performance and 14 meters read range, work on UHF 865-867MHz frequency, ARC certified tags, 54mm*34mm size, suitable for asset tracking

Write a review
Features
Brand: AD Corp
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 14m
Chip Type: Impinj Monza M730
EPC Memory: 128 bits
Enquire Now
Be the first to review this item
 Write a review

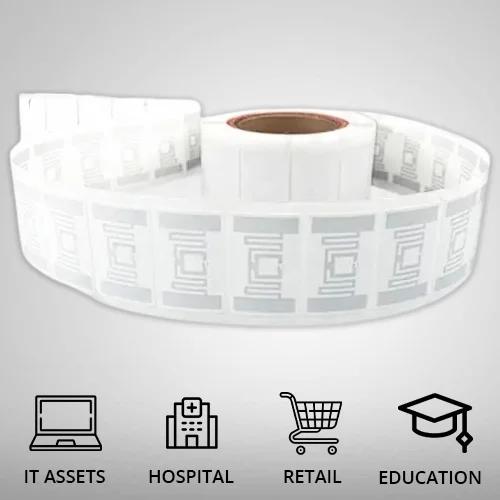

PID-5434-UHF RFID Paper/Polyester Asset Tags and labels are a type of RFID label that can be used for apparel and retail applications. It works on the 860-960MHz frequency and follows ISO 18000-63 and EPCglobal Gen2v2 communication protocols, offering a long reading range of up to 14 meters.

These UHF RFID Paper/Polyester labels can also store data such as product information, serial numbers, and user-defined information. RFID tags are intended to be read by UHF RFID scanners, allowing for quick and accurate identification and tracking of goods.

EnCstore offers these high quality, high-performance UHF RFID labels, procured from industry-best RFID manufacturer, at the best prices, most suitable for tracking assets in retail, healthcare, libraries, etc.

Why buy the 5434 - UHF RFID Paper/Polyester Asset Tags & Labels?

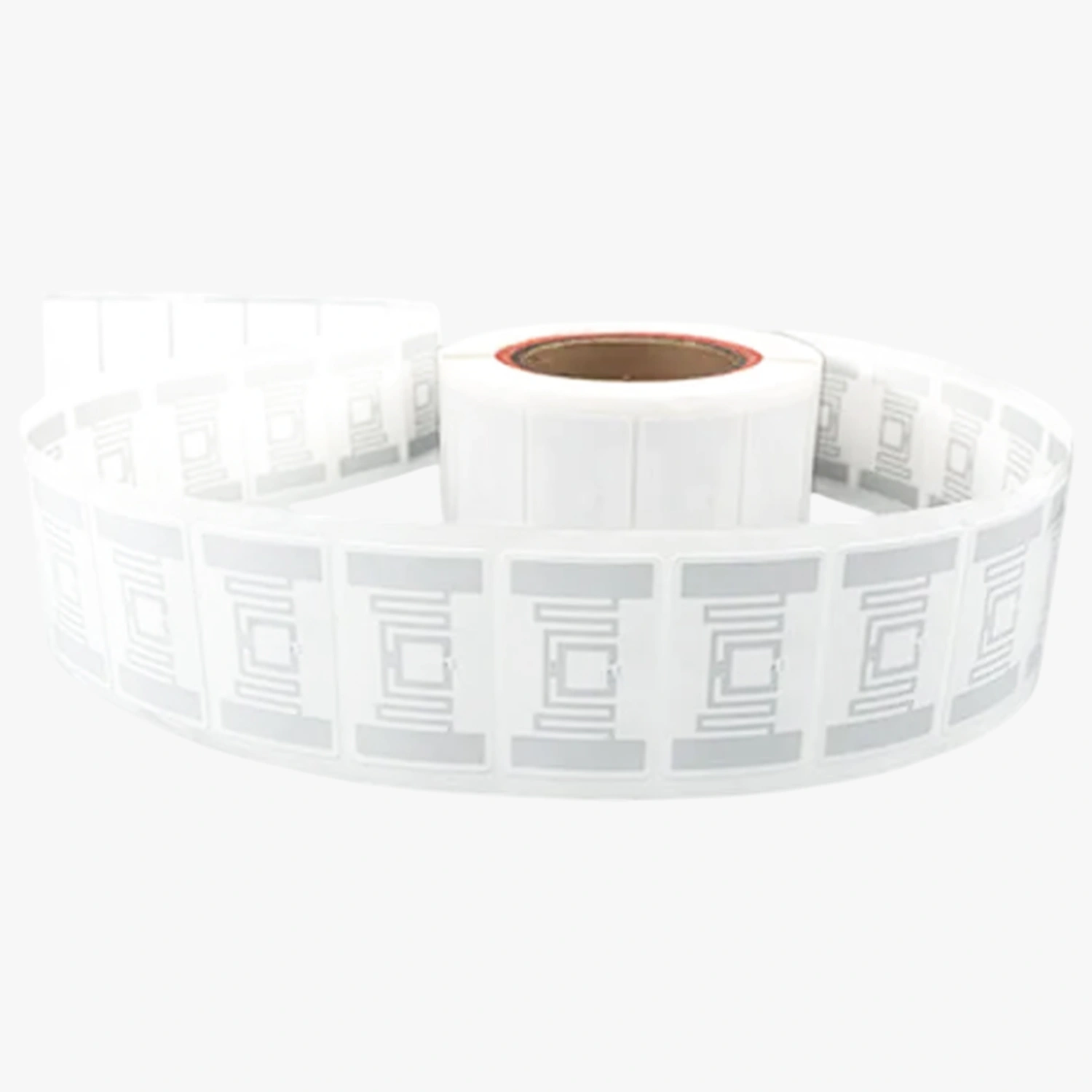

The UHF RFID label in 54mm x 34mm size is available in paper, polyester, and inlay categories. These tags are a perfect solution for tagging and tracking assets in retail, supply chain, inventory management, and other applications. They feature the Impinj M730 chip and offer best-in-class read rates and accuracy.



RFID Readers and Antennas to Buy with this Tag

These tags can be used with distinct RFID readers and antennas including:

Zebra FX9600 Fixed Reader,

RFD40 RFID Handheld Reader by Zebra,

AN480 RFID Antenna by Zebra,

9 dBi UHF RFID Antenna, etc.

Features of UHF RFID Paper/Polyester Asset Tags & Labels

UHF Frequency: 865-867 MHz (India)

ARC certified labels

• RFID Chip: Impinj Monza M730

EPC memory size: 128 bits

User memory size: 64 bits

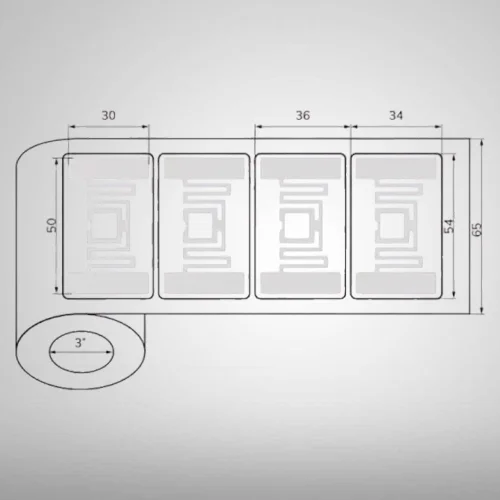

Antenna size: 50mm x 30mm

Tag size: 54mm x 34mm

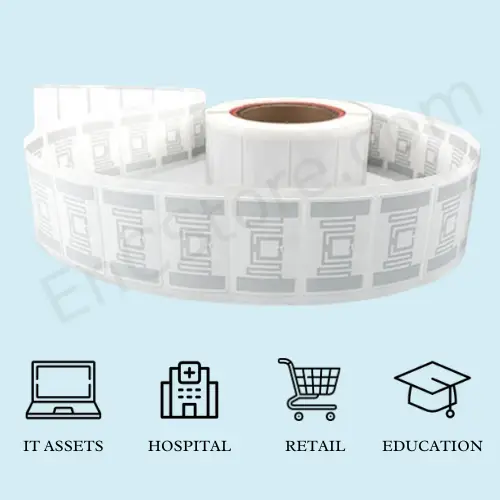

Suitable for application in retail, supply chain, healthcare, libraries, etc.

Relevant ProductsRFID Readers in IndiaRFID Antennas in India

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-63 and EPCglobal Gen2v2
Read Range Up to 14m
Chip Type Impinj Monza M730
EPC Memory 128 bits
User Memory 64 bits
Write Cycle Endurance 100,000 cycles
Data Retention 10 Years
Tag Material Paper/Polyester
Tag Size 54mm(L) X 34mm(W)
Antenna Size 50mm(L) X 30mm(W)
Applicable Surface Glass, Plastic, Wood, Cardboard
Attachment /Mounting Method Adhesive
Operating Temperature -30°C to +80°C
Storage Temperature -30°C to +80°C
IP Ratings IP67
