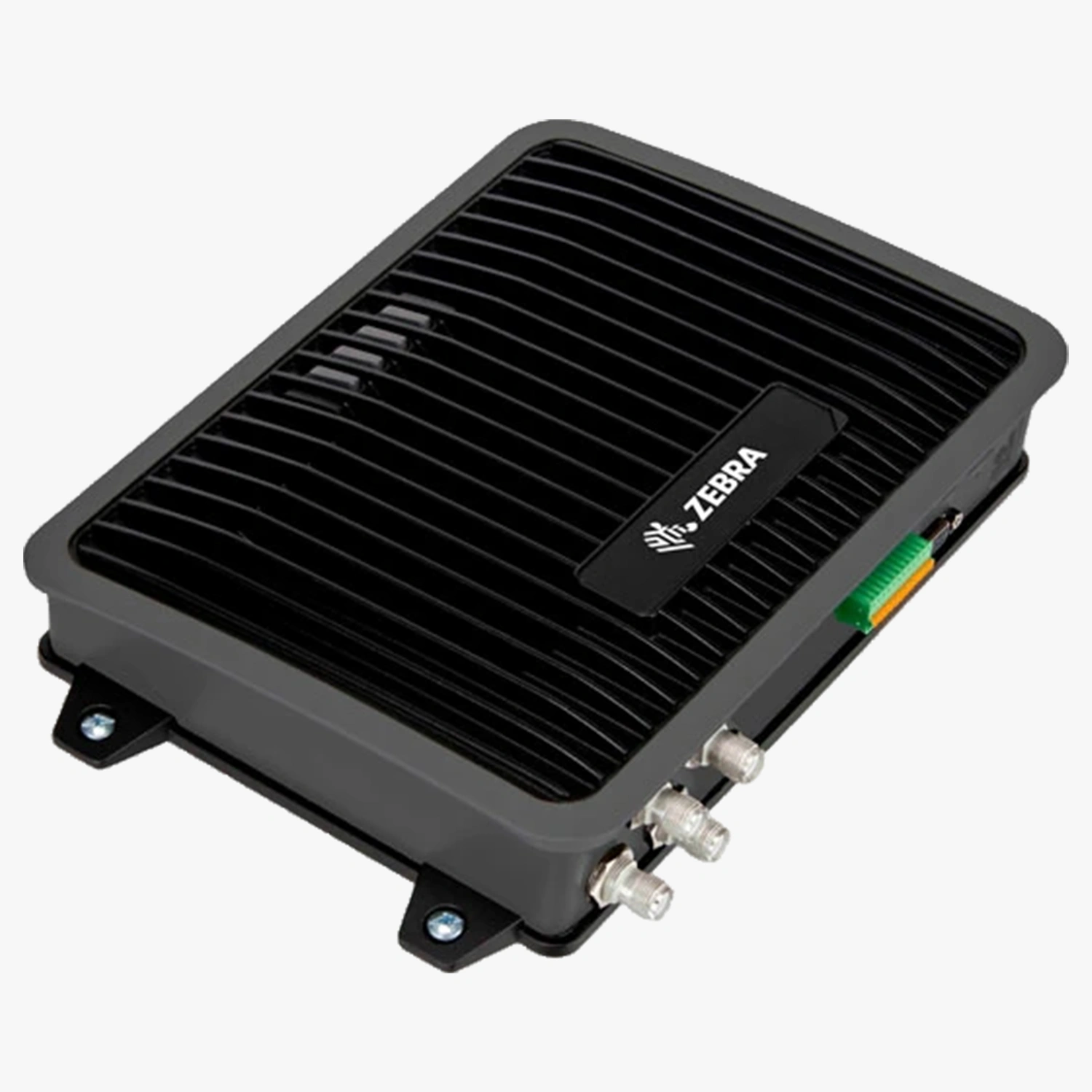

Zebra FX9600 RFID Reader - 4 Antenna Ports, Fixed/Wall Mount

Rugged FX9600 Zebra Fixed RFID Reader (Part Code: FX9600-42325A50-IN/FX9600-42325A56-IN), UHF, 4 Antenna Ports, Wall Mount, POE and POE+ Power Supply, -86dBm Max Receive Sensitivity, IP53 Rating

Write a review
Features
Brand: Zebra
Operating Frequency: 865 - 928 MHz
Communication Protocol: EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63)
Transmit Power: 0dBm to +33.0dBm: PoE+, 24V External DC, Universal 24 VDC Power Supply; 0dBm to +31.5dBmPoE, 12V External DC (4-port-models only), 24V External DC, Universal 24 VDC Power Supply
Max Receive Sensitivity: -86 dBm monostatic
GPIO: 4 inputs, 4 outputs, optically isolated (Terminal Block)
Enquire Now

Zebra FX9600 Fixed RFID Reader is a high performance RFID Reader with 4 port connectivity, offering a read range of upto 15meter and a read rate of up to 1200 tags/second, most suitable for high-volume scanning and harsh industrial environments.

The FX9600 UHF RFID reader is designed and manufactured by Zebra, a global RFID manufacturing company based in the USA. It is most suitable for industrial and commercial applications offering long read range, fast read rates, and multiple wireless and wired connectivity options. The FX9600 Zebra RFID Reader has an integrated USB port that supports a Wi-Fi/Bluetooth dongle, as well as Bluetooth-enabled laptops and other devices, allowing direct wireless communication to your Wi-Fi network.

EnCstore offers Zebra FX9600 Fixed Mount RFID Reader with wall mounting, POE and POE+ power supply, -86 dBm Max Receive Sensitivity, IP53 sealed housing certification, and 4 RF antenna connections. The Fixed RFID Reader also comes in 8 port antenna connectivity option.

The Fixed RFID UHF Reader FX9600 by Zebra delivers cost effective passive UHF asset tracking and inventory management without reducing performance in various retail, supply chain and manufacturing applications.

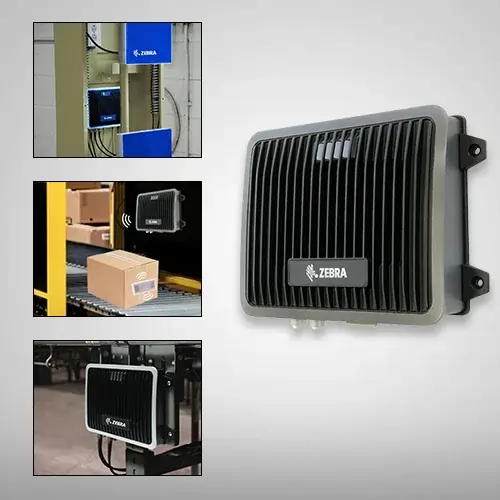

Applications of FX9600 UHF RFID Readers

 • Retail item level tagging and Returnable Transport Items (RTIs),

 • Inventory tracking and management

 • Supply chain management and logistics

 • Healthcare asset management

 • Manufacturing and production automation

Specifications
Operating Frequency 865 - 928 MHz
Communication Protocol EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63)
Transmit Power 0dBm to +33.0dBm: PoE+, 24V External DC, Universal 24 VDC Power Supply; 0dBm to +31.5dBmPoE, 12V External DC (4-port-models only), 24V External DC, Universal 24 VDC Power Supply
Max Receive Sensitivity -86 dBm monostatic
GPIO 4 inputs, 4 outputs, optically isolated (Terminal Block)
Power Source POE (802.3af, POE+ (802.3at) +24V DC, (UL Approved)
Processor Texas Instruments AM3505 (600 MHz)
Material Die-cast aluminum, meets IP53 standards
Dimension 273.05mm(L) x 184.15mm(W) x 50.8mm(T)

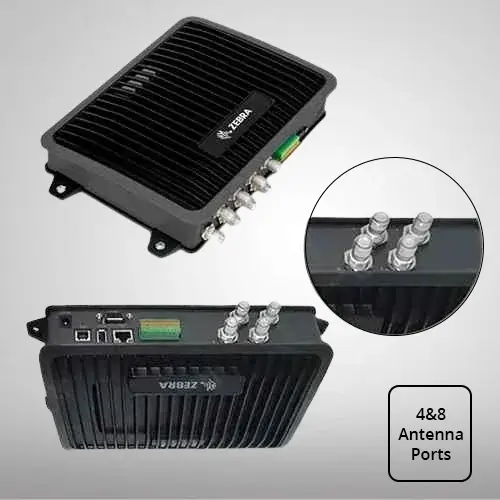

Antenna Ports FX9600-4: 4 monostatic ports; (Reverse Polarity TNC), FX9600-8: 8 monostatic ports; (Reverse Polarity TNC)
Memory Flash 512 MB; DRAM 256 MB
Operating System Linux
Mounting Wall Mount
Operating Temperature -20°C to +55°C
Storage Temperature -40°C to +70°C
IP Ratings IP53
Model No FX9600-42325A50-IN/FX9600-42325A56-IN
