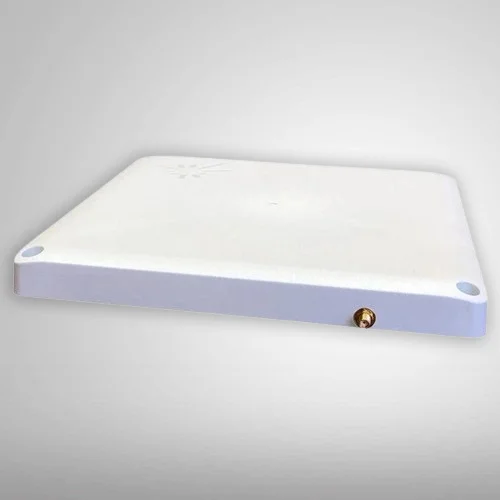

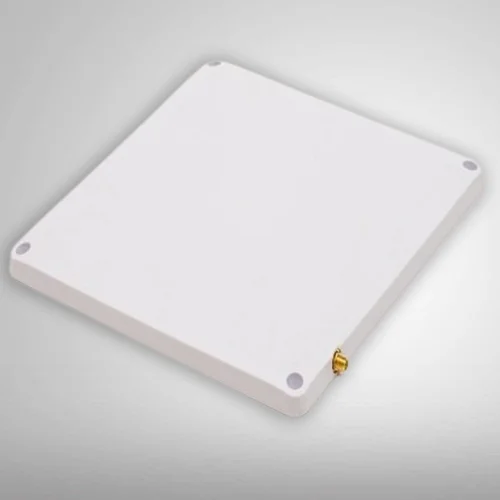

This 9dBi Circular Polarized UHF RFID Antenna works on UHF 865-867MHz Frequency, offers high-performance, 9dBi gain, long-range communication with rugged design, IP68 rating, and SMA female connector

Write a review
Features
Operating Frequency: 865-868 MHz, Ultra High Frequency
Polarization: CP (Circular Polarized)
Gain: 9 dBic
Connector Type: SMA Female Type connector
Dimensions: 10 X 10 X 0.8 inches
Enquire Now
Be the first to review this item
 Write a review

We offer UHF 9dBi antennas with circular polarization, offering long-range (up to 9m) communication between RFID tags and readers, best suited to various heavy-demand industrial and commercial applications such as retail, toll plaza automation, and electronic toll collection, parking management, warehouse management, etc.

These antennas are high-performance, circular polarized antennas with 9dbi of gain, packed in a compact low-profile polycarbonate covering with plenum rating and fire-resistant properties. The antennas also feature a rugged design, and compact form factor which can withstand harsh environmental conditions with an IP rating of 68, most suitable for outdoor applications where a 360-degree tag read is a requirement.

 We also offer a wide selection of UHF RFID labels, antennas, and UHF RFID readers, manufactured by leading RFID manufacturing companies in India and globally. We offer pan-India express delivery and easy returns. You can contact us for quotations on various RFID products as well.

Application of 9dBi Circular Polarized UHF RFID Antenna

• Retail and inventory management

• Healthcare

• Manufacturing and supply chains

Specifications
Operating Frequency 865-868 MHz, Ultra High Frequency
Polarization CP (Circular Polarized)
Gain 9 dBic
Connector Type SMA Female Type connector
Dimensions 10 X 10 X 0.8 inches

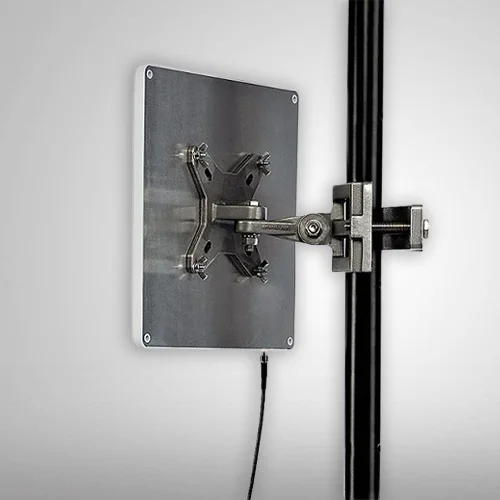

Mounting Flush and Vesa Mount
Max. Power Input 3 W
Max Read Distance Up to 9m (29 ft)
IP Rating IP68
VSWR 1.3 typical
Front to back ratio -20 dB
Operating Temprature -25°C to 70°C
