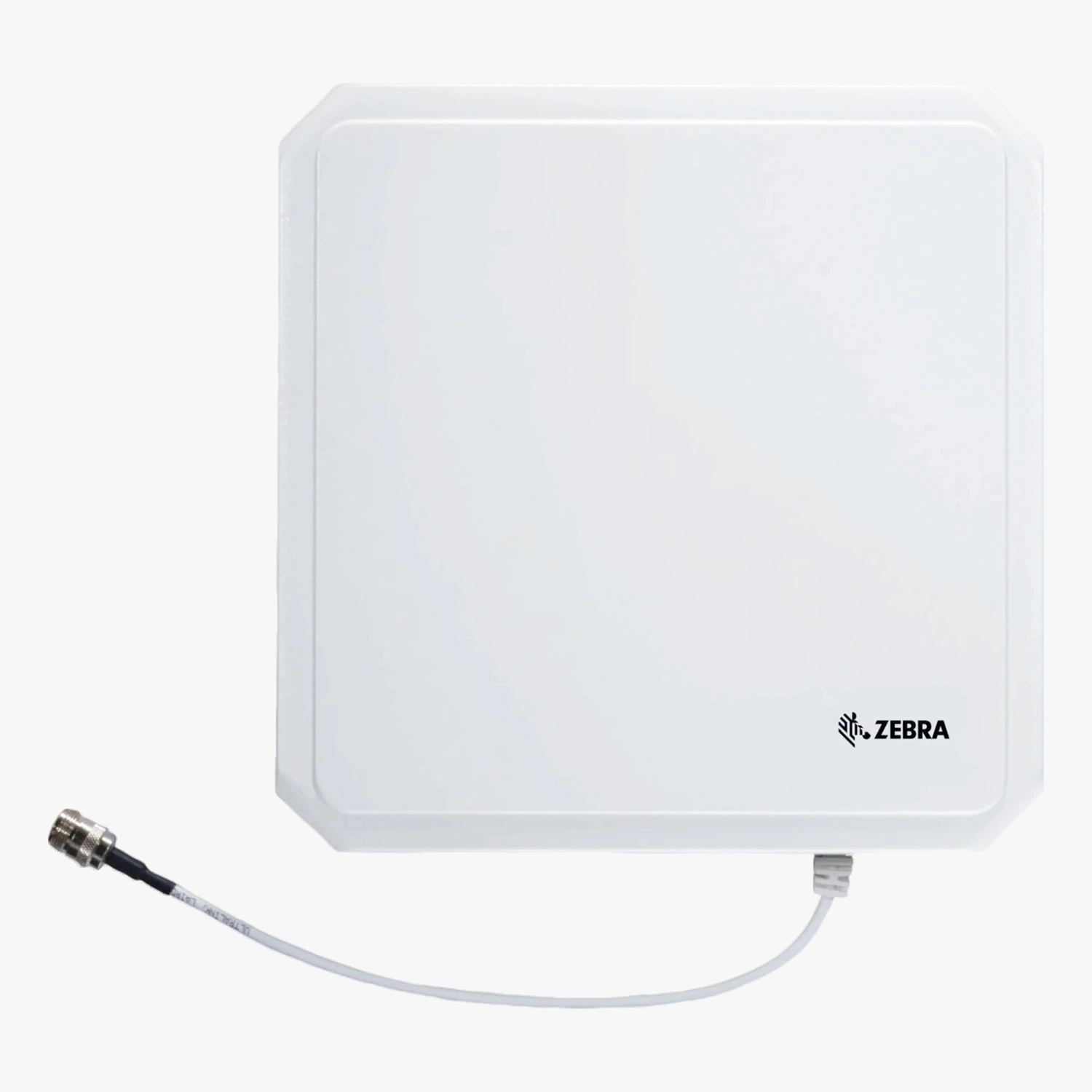

Zebra AN480 RFID Antenna, 6dBi, Circular Polarization

The Zebra AN480 RFID antenna offers a 6dbiL antenna gain and circular polarization for efficient tag reading with an operating frequency range of 865 -956 MHz, N-type female connection and IP54 rating

Write a review
Features
Brand: Zebra
Operating Frequency: 865 – 956 MHz
Polarization: Left-hand circular or Right-hand circular
Connector: N-Type Female
Dimensions: 259.1 mm x 259.1 mm x 33.5 mm /
Gain: 6.0 dBiL
Enquire Now

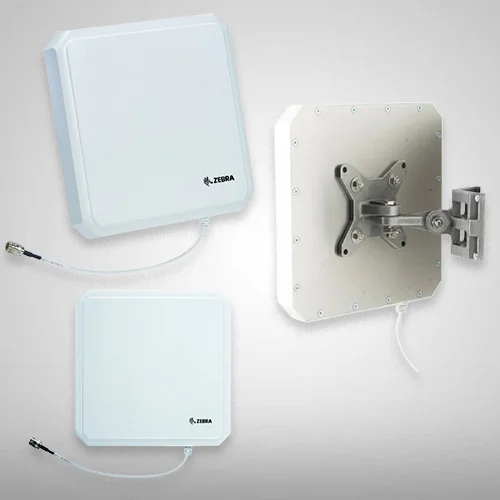

The Zebra AN480 RFID Antenna is a highly advanced wide-band UHF RFID antenna designed to provide accurate and reliable tracking of inventory and assets. The Zebra AN480 antenna is circularly polarized to the left or right and has an N-type female connector with a rear connection. It provides optimal performance at 865-965MHz frequency, also compatible with 865-867 MHz Indian UHF Frequency.

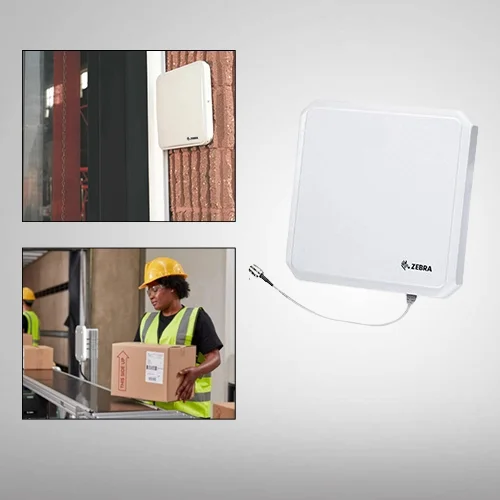

Get the Zebra RFID antenna AN480 which features a compact and sleek design measuring 259.1mm*259.1mm*33.5mm, making it easy to install in various environments. It is certified IEC-68-2-30 for humid conditions and has an IP54 accreditation for protection against dust and water particles, allowing it to be installed in areas that are commonly dusty. The Zebra RFID Antenna can be mounted on walls, ceilings, or poles, ensuring flexibility in placement. Its powerful design assures long-term performance, even under challenging conditions. Get the latest Zebra AN480 UHF RFID antenna price in India and quotations, only from EnCstore.

Applications of Zebra AN480 RFID Antenna

• Retail and POS operations

• Supply chain

• Enterprise/office

• Healthcare access control system and tool tracking

• Hospitality

Specifications
Operating Frequency 865 – 956 MHz
Polarization Left-hand circular or Right-hand circular
Connector N-Type Female
Dimensions 259.1 mm x 259.1 mm x 33.5 mm /
Gain 6.0 dBiL
Connector Location Rear
Mounting Options Mounting studs provided
Weight 2.5 lbs. / 1.13 kg
Casing/Materials Aluminum with white plastic cover
VSWR (Return Loss) 1.3:1
Front to Back Ratio 18 dB
3bB Beam Width 65° in both planes
Maximum Power 2 Watts
Axial Ratio 1.5 dB typical
Operating Temperature -25° to +70°C
Storage Temperature -40° to +70°C /
IP Rating IP54
