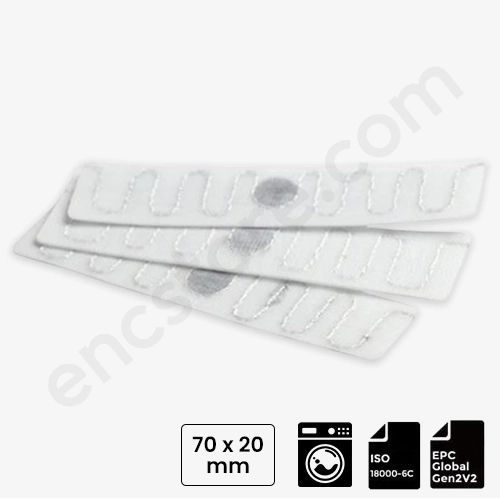

RFID Washable laundry tags with 860-960MHz (UHF) Frequency, 70mmx 20mm in size are perfect for linen tracking, provides long read range, up to 200 Washing Cycle, Sewing Mounting

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Chip Type: NXP UCode 8 / Impinj Monza M730
EPC Memory: 128 bits
Write Cycle Endurance: 100,000 Cycles
Enquire Now
Be the first to review this item
 Write a review

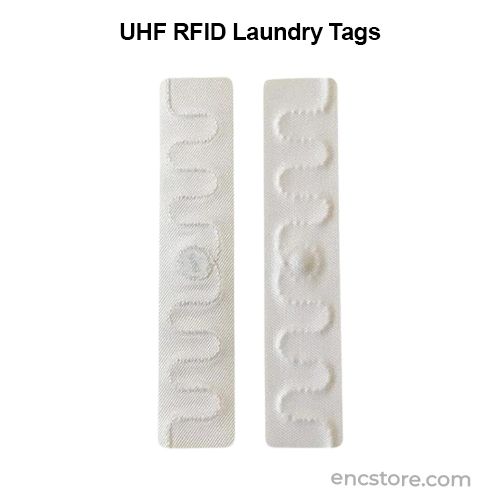

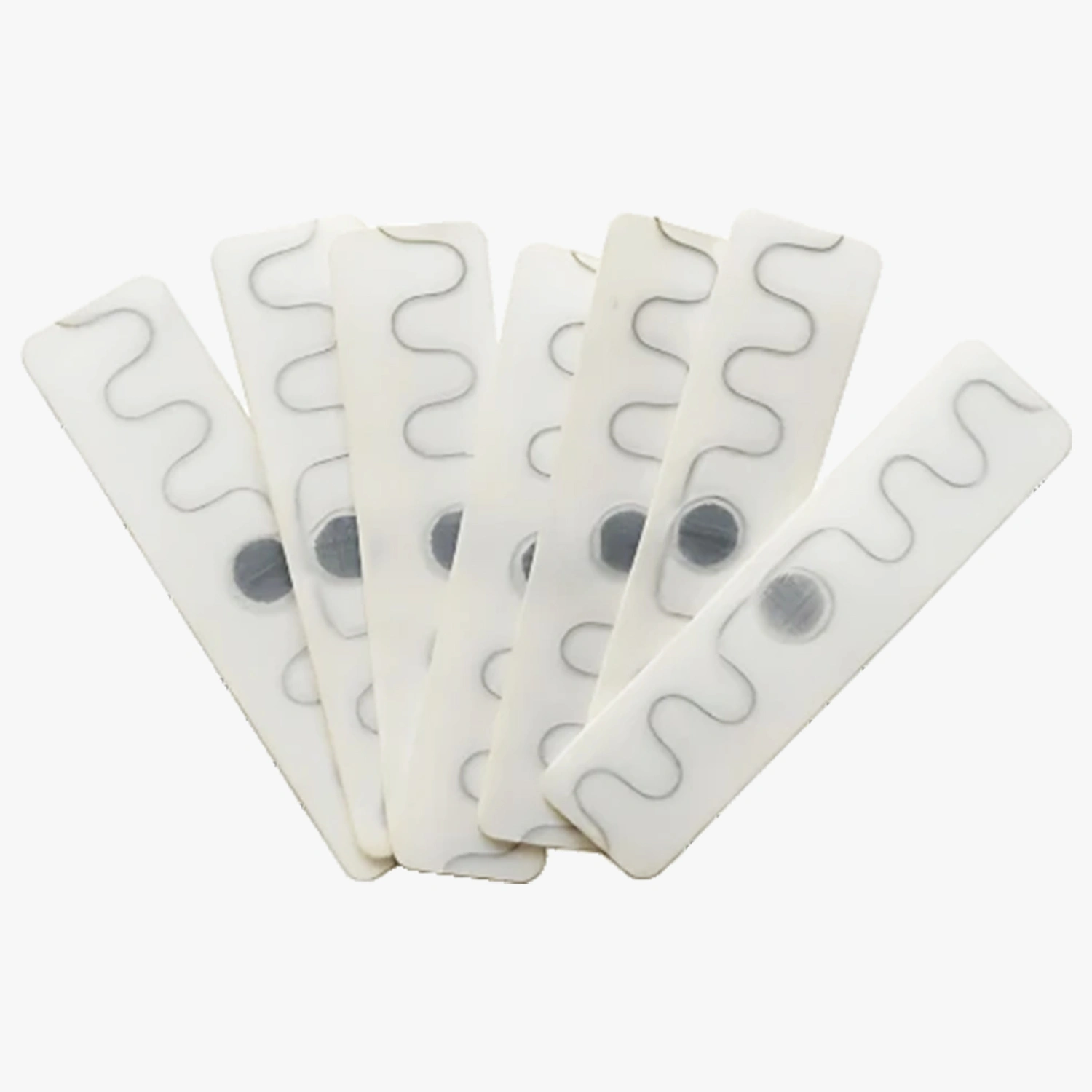

PID-LT7020 UHF RFID laundry tags are designed specifically to help hospitals manage their linen inventory which is a complex task in itself. These tags are attached to hospital linens, such as bed sheets, towels, and gowns, and can be tracked throughout the laundry process using RFID readers.

These tags can store important information such as linen type, size, and location, allowing hospital staff to quickly and accurately track inventory levels and make informed decisions.

A UHF RFID laundry tag operates over UHF frequency 860–960 MHz follows ISO 18000-6C EPC Class 1 Gen 2 communication protocol, and provides a long read range of up to 12m.

These UHF RFID laundry tags provide a quick and easy way to identify and track linens in hospitals from the time of wash to the time of use, collection, and rewash.

The RFID laundry tags can also be used in hospitals to track the number of times a piece of linen has been washed and used to ensure hygiene. With UHF RFID laundry tags, hospitals can reduce linen loss, increase efficiency, and improve the overall quality of care as well.

Our UHF RFID Laundry Tags are durable and reliable, can withstand the harsh conditions of industrial laundry, and provide real-time tracking of linen inventory, reducing losses and improving efficiency, a perfect solution for hospital linen management at affordable price.

Our UHF RFID Laundry tags offer long read range and fast data transfer and provide real-time visibility into linen inventory, reducing the risk of stockouts and ensuring that hospitals always have the right amount of linen on hand.



Applications of UHF RFID Laundry Tags

• Industrial washing

• Management of uniforms

• Medical apparel management

• Personnel patrol management

• Military Clothing Management

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Chip Type NXP UCode 8 / Impinj Monza M730
EPC Memory 128 bits
Write Cycle Endurance 100,000 Cycles
Yield 100%
Tag Material Polycotton fabric base / 100 % Polyester
Tag Size 70mm(L) x 20mm(W) x 2mm(T)
Applicable Surface Linen and garments

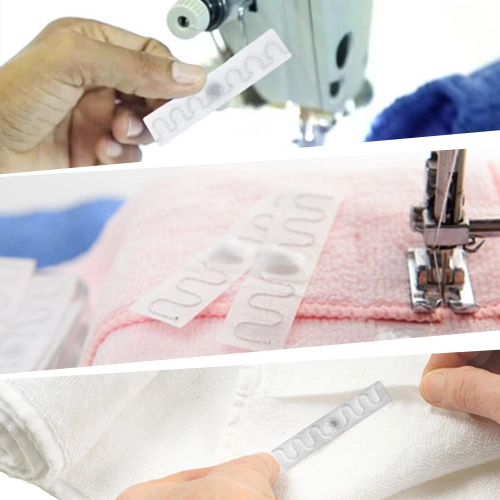

Attachment /Mounting Method Thermal Patching / Heat -sealing/ Sewing
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +120°C
Drying 160°C / 30 min
Tunnel Washer 185°C / 20 min
Tunnel finisher 185°C / 20 min
Washing Cycle 60
