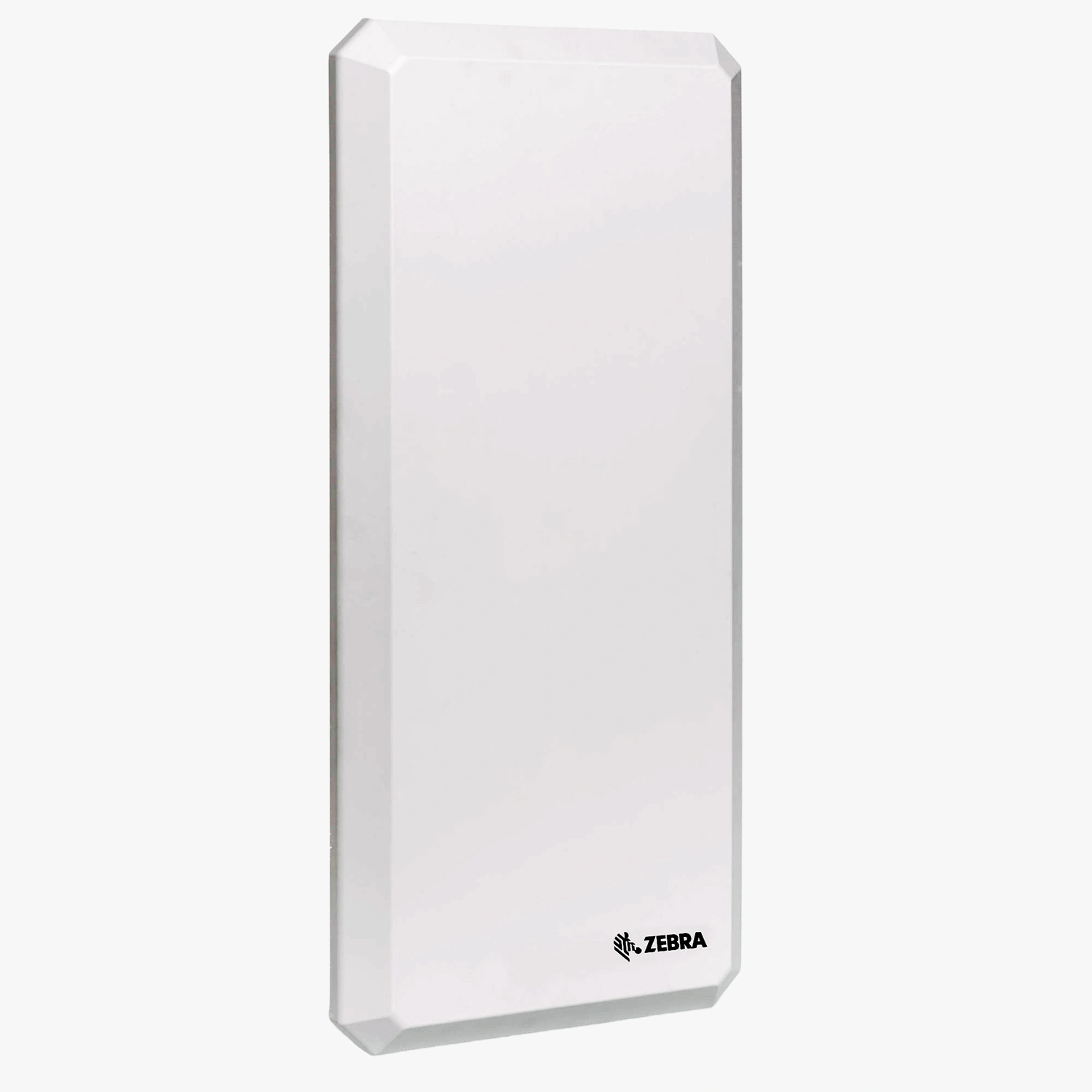

Zebra AN440 Dual-Element RFID Antenna, Circular Polarized

The Zebra AN440 Dual-Element RFID Antenna works on UHF 865-867MHz frequency, and offers 6dBi antenna gain, circular polarization, IP67 rating and Dual N- type female connector

Write a review
Features
Operating Frequency: 865-867 MHz, Ultra High Frequency
Polarization: Circular
Gain: 6dBi
Connector Type: Dual N-Type Female Rear
Dimensions: 575.1mm(L) x 259.1mm(W) x 33.52mm(T)
Enquire Now
Be the first to review this item
 Write a review

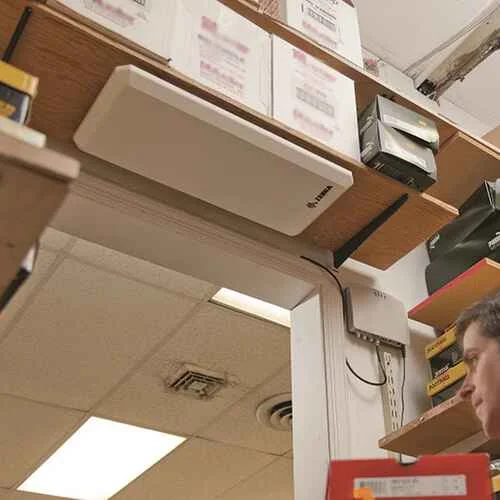

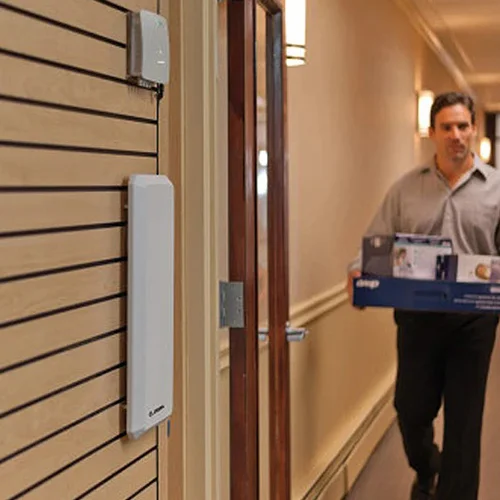

The Zebra AN440 Dual-Element RFID Antenna is a high-performance, circularly polarized antenna designed for reliable and efficient RFID tag reading in various environments. With its dual-element design, it enhances coverage and accuracy, making it ideal for warehouses, distribution centers, and manufacturing facilities. The AN440 provides strong and consistent RF signals, ensuring better tag detection over a wide area. Its rugged construction allows it to withstand harsh conditions, making it suitable for both indoor and outdoor use. Whether used for inventory management, asset tracking, or supply chain operations, the Zebra AN440 delivers superior performance and flexibility for RFID applications.

Specifications
Operating Frequency 865-867 MHz, Ultra High Frequency
Polarization Circular
Gain 6dBi
Connector Type Dual N-Type Female Rear
Dimensions 575.1mm(L) x 259.1mm(W) x 33.52mm(T)
Mounting Options Mounting studs provided
Weight 3.2kg
Maximum Power 10 Watts
IP Rating IP67
Front to Back Ratio 20 dB
Operating Temperature -30°C to 70°C
Storage Temperature -40°C to 85°C
