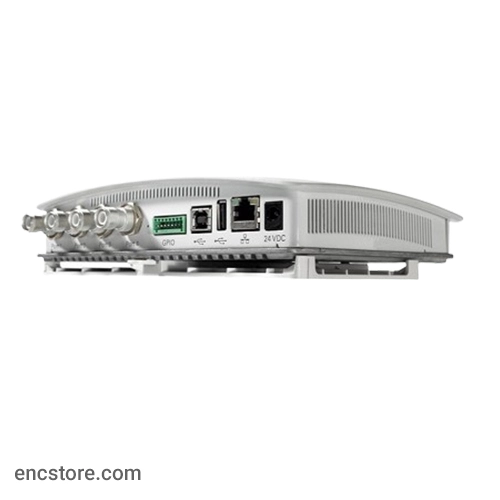

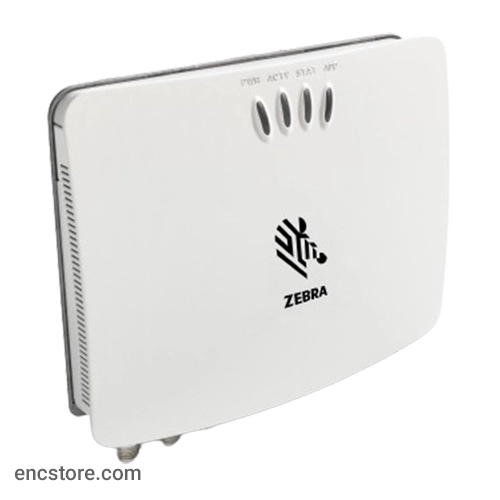

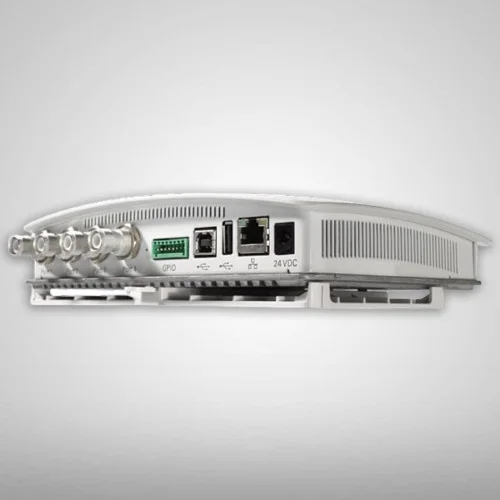

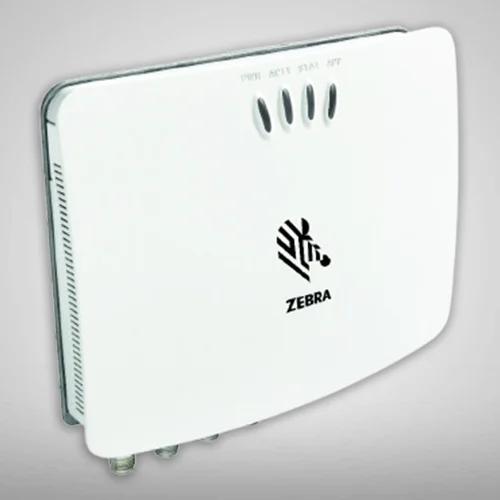

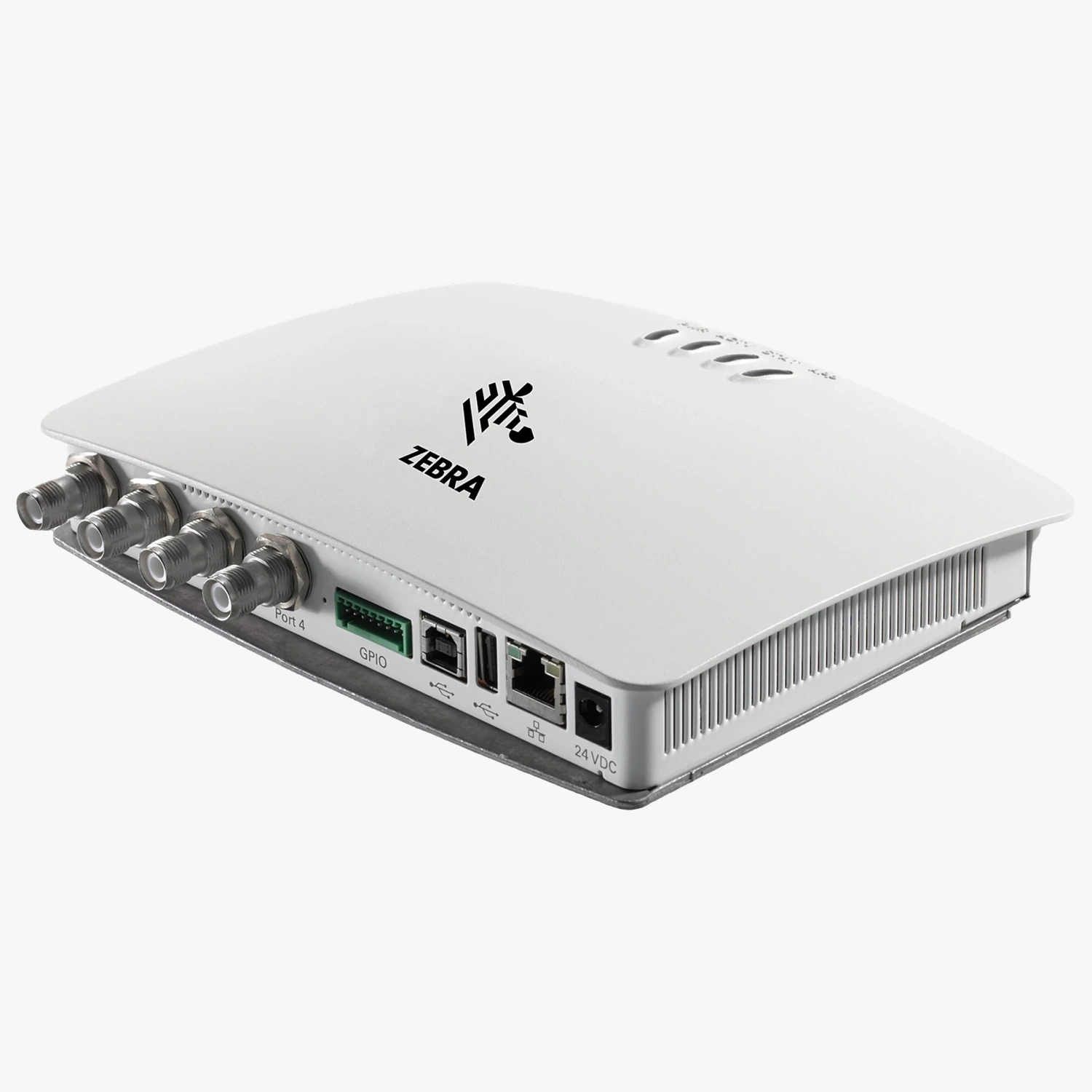

Zebra FX7500 Fixed UHF RFID Reader, 4 Antenna Ports, PoE

Zebra FX7500 Fixed RFID Reader is a UHF wall mount RFID fixed reader with 4 Antenna port connectivity, POE and POE+ power supply, -82 dBm Max Receive Sensitivity, and a 1200+ tags per second read rate

By Ruddersoft i
Write a review
Features
Brand: Zebra
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Transmit Power: 10 dBm to +31.5 dBm (POE+, 12V ~48V External DC, Universal 24V DC Power Supply); +10 dBm to +30.0 dBm (POE)
Max Receive Sensitivity: -82 dBm
GPIO: 2 inputs, 3 outputs, optically isolated (Terminal Block)
Enquire Now
Related Products
URA4C Fixed Android UHF RFID Reader
Impinj R700 RAIN RFID Reader - 4 Antenna Ports, IoT Enabled
UR4, 4-Port Fixed Long Range UHF RFID Reader
Impinj Speedway Revolution R420 UHF RFID Reader (4 Port)
IMPINJ Speedway R220 2 Port Fixed Long Range RFID Reader
Be the first to review this item
 Write a review

We offer the latest Zebra FX7500 fixed RFID reader designed for business class environments, offering high performance, a long read range of up to 12m, and 1200+ tags per second high read rate.

The FX7500 fixed RFID reader by Zebra is a one of a kind premium grade RFID fixed reader that features a high-performance Texas Instruments AM3505 (600 Mhz) processor, 512 MB flash and 256MB DRAM, Linux operating system, and Wi-Fi and Bluetooth connectivity through a dedicated USB port.

The Zebra FX7500 is a cost-effective RFID fixed reader in comparison to the FX9600 Fixed Reader by Zebra, and the 4 port antenna connectivity allows for a flexible read field. The reader is compatible with UHF frequency 860-960 MHz, EPCglobal gen 2 v2, ISO 18000-63 RFID standards and protocols, and also suitable for use in Indian business processes with UHF 865-867MHz operating frequency.

Applications of Zebra FX7500 Fixed RFID Reader

• Retail

• Warehouse management

• Supply chain and manufacturing

• Transportation

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Transmit Power 10 dBm to +31.5 dBm (POE+, 12V ~48V External DC, Universal 24V DC Power Supply); +10 dBm to +30.0 dBm (POE)
Max Receive Sensitivity -82 dBm
GPIO 2 inputs, 3 outputs, optically isolated (Terminal Block)
Power Source POE, POE+ or +24V DC (UL Approved) 12V-48VDC operation can be supported
Processor Texas Instruments AM3505 (600 Mhz)
Material Die-cast aluminum, sheet metal and plastic
Dimension 195.6mm(L) x 149.9mm(W) x 43.2mm(D)
Antenna Ports FX 7500-4: 4 mono-static ports (Reverse Polarity TNC)
Memory Flash 512 MB; DRAM 256 MB
Operating System Linux
Mounting Keyhole and standard VESA (75mm x 75mm)
Weight 1.9 lbs ± 0.1 lbs (0.86 kg ± 0.05 kg)
Operating Temperature -20°C to +55°C
Storage Temperature -40°C to +70°C
