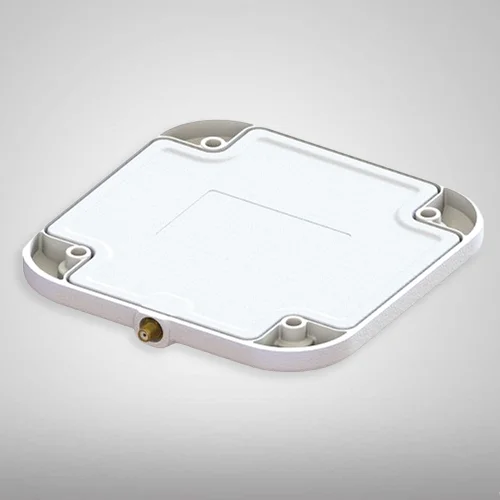

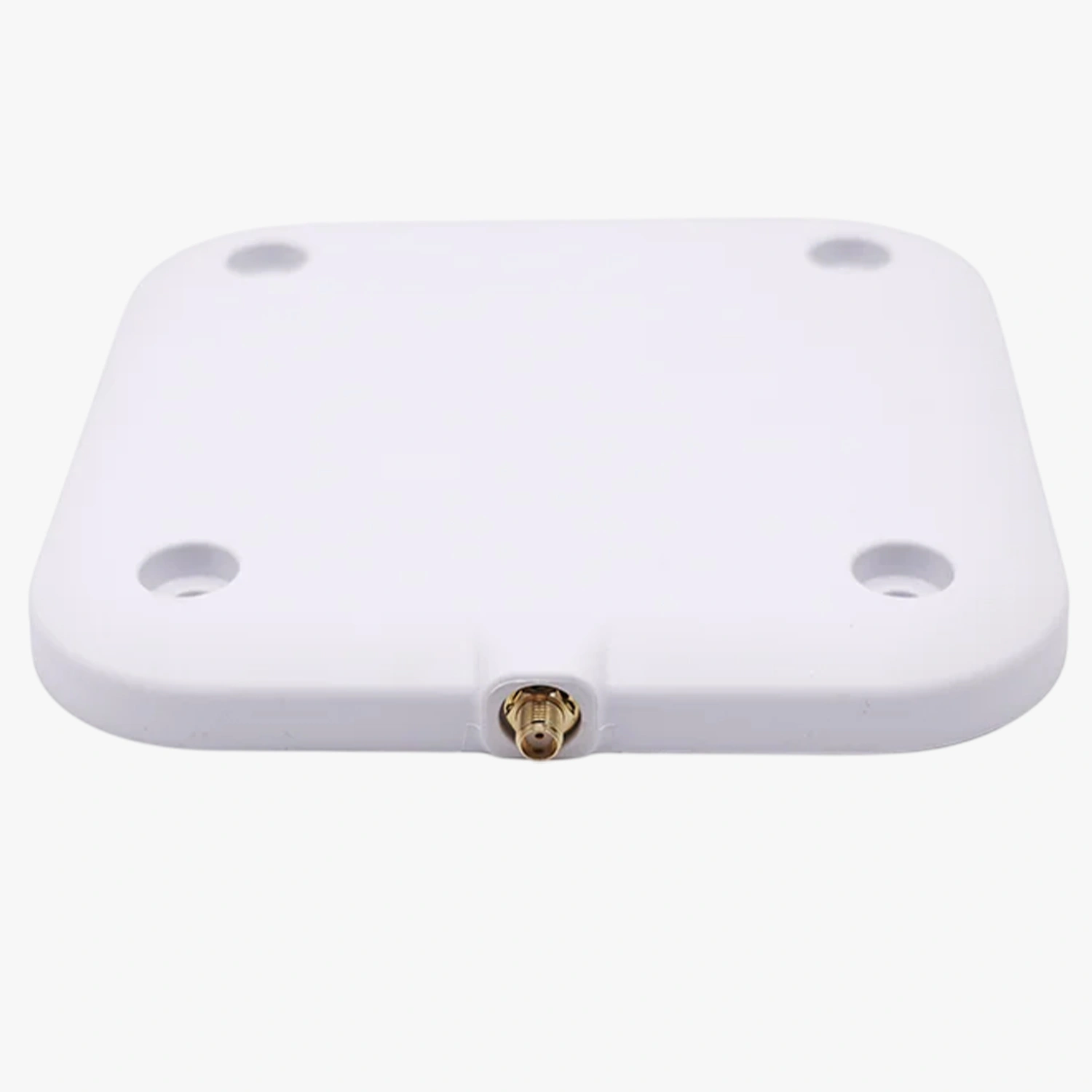

Zebra AN520 Ultra Rugged RFID Antenna, Circular Polarized

The Zebra AN520 Ultra Rugged UHF RFID Antenna with frequency range of 865 – 868 MHz, offer a 5.5dbiL antenna gain and right hand circular polarization with sma female connector and an IP68 rating

Write a review
Features
Operating Frequency: 865–867 MHz
Polarization: Right hand circular polarization (RHCP)
IP Rating: IP68
Dimensions: 150mm(L) x 150mm(W) x 14mm(D)
Connector: SMA Female
Enquire Now
Be the first to review this item
 Write a review

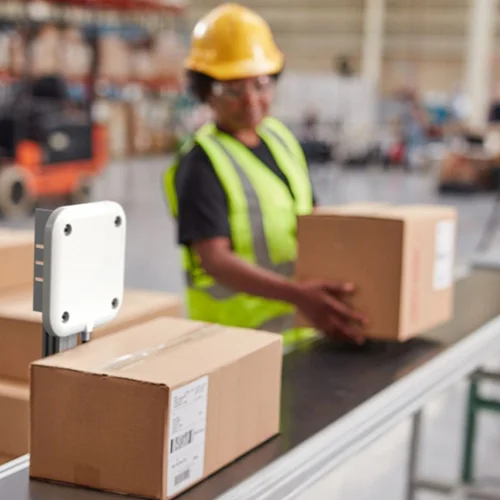

The Zebra AN520 Ultra-Rugged RFID Antenna is a compact and durable circular polarized antenna designed for demanding industrial environments. It provides consistent and high-performance RFID reading, making it ideal for warehouses, manufacturing facilities, and outdoor applications. The AN520 has a sleek, low-profile design while being IP68-rated, ensuring resistance to dust, water, and harsh conditions. Its circular polarization allows reliable tag reading in various orientations, improving efficiency in RFID tracking. This antenna is easy to mount on walls, ceilings, or vehicles, offering flexible installation options. With Zebra’s trusted quality, the AN520 ensures strong and stable RFID performance for businesses needing rugged and efficient tracking solutions.



Specifications
Operating Frequency 865–867 MHz
Polarization Right hand circular polarization (RHCP)
IP Rating IP68
Dimensions 150mm(L) x 150mm(W) x 14mm(D)
Connector SMA Female
Connector Location Side Connector

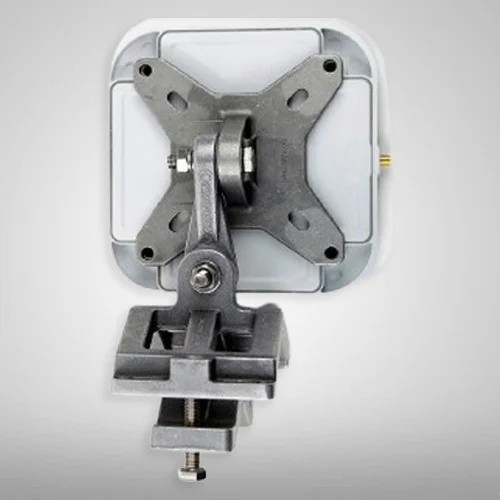

Mounting Option Flush Mount
Material UV Resistant ABS
Weight 0.25kg/0.55lbs
VSWR (Return Loss) 1.4 typical
Front to Back Ratio -10 dB
Maximum Power 3 Watts
Axial Ratio 2 dB typical
Operating Temperature -40° to +65°C
Storage Temperature -40° to +65°C
