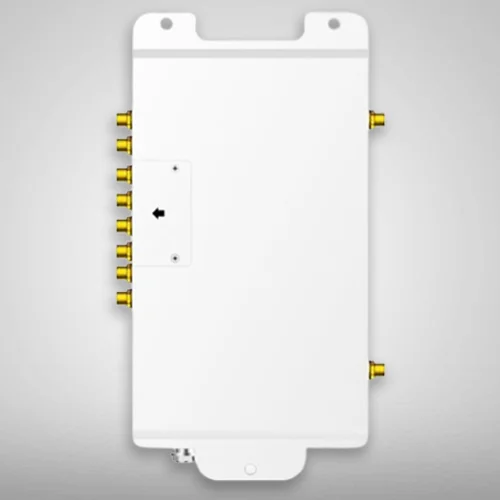

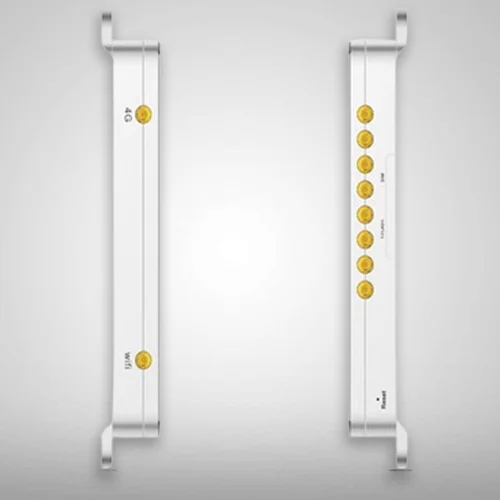

URA8 Fixed Android RFID Reader, Wall Mounted UHF RFID Reader

URA8 is an enterprise-grade, long read range support, 8-port, high-performance, wall-mountable fixed UHF RFID reader, supports RS232, RJ45(POE / POE+), HDMI, USB, GPIO, and more

Write a review
Features
Operating Frequency: 865 - 928 MHz
Communication Protocol: EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63)
Input Voltage: DC 10V – 24V
Communication Interface: 1*RS-232 , 1*RJ45, 2*USB2.0 Type A, USB Host
GPIO: 2 input optical coupling, 2 output optical coupling
Enquire Now
Be the first to review this item
 Write a review

URA8 Fixed Android RFID Reader: URA8 is an enterprise-grade, 8-antenna port, high-performance, Wall-mountable fixed UHF RFID reader embedded with an octa-core processor running Android 9.0. It delivers strong and stable tag reading performance and supports RS232, RJ45(POE / POE+), HDMI, USB, GPIO, and more.

Fixed  RFID Reader is a high-performance RFID reader with a built-in Android device. It supports both 1D and 2D barcode scanning and is designed for quick and easy integration into any system. This fixed RAIN RFID reader is designed to be mounted on a wall or desk and can be used in a variety of applications. The reader features a rugged and durable design, making it suitable for many environments. It also has an integrated antenna and low power consumption, making it an ideal choice for long-term operations.

Application: Warehouse management, Library management, Vending Machine, Apparel and footwear retailers, Jewelry monitoring, Laundry, and more.

Specifications
Operating Frequency 865 - 928 MHz
Communication Protocol EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63)
Input Voltage DC 10V – 24V
Communication Interface 1*RS-232 , 1*RJ45, 2*USB2.0 Type A, USB Host
GPIO 2 input optical coupling, 2 output optical coupling
Power Source DC(12V), POE(802.3af 13W), POE+(802.3at 25.5W)
RAM + ROM 2 GB + 16 GB / 3 GB + 32 GB / 4 GB + 64 GB
Processor Qualcomm 1.8 GHz Octa-core
Max Receive Sensitivity < -84dBm
Max Read Rate 900+ tags/sec
Material Aluminium alloy
Dimension 162mm(L) x 95mm(W) x 22mm(H)
Antenna Ports 8 channel 50O SMA port
Operating System Android 9.0
Mounting Wall Mount
Weight 448g (Without Antenna)
Operating Temperature -25°C to +65°C
Storage Temperature -40°C to +85°C
