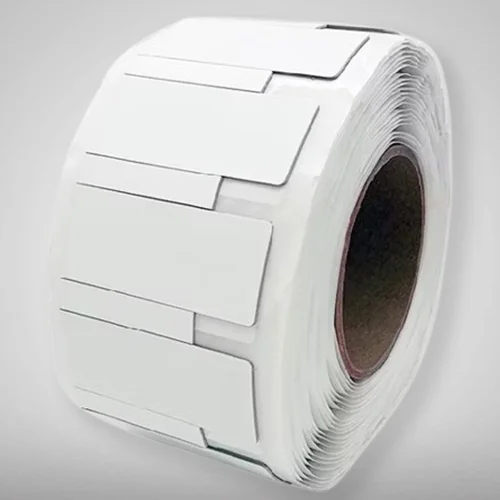

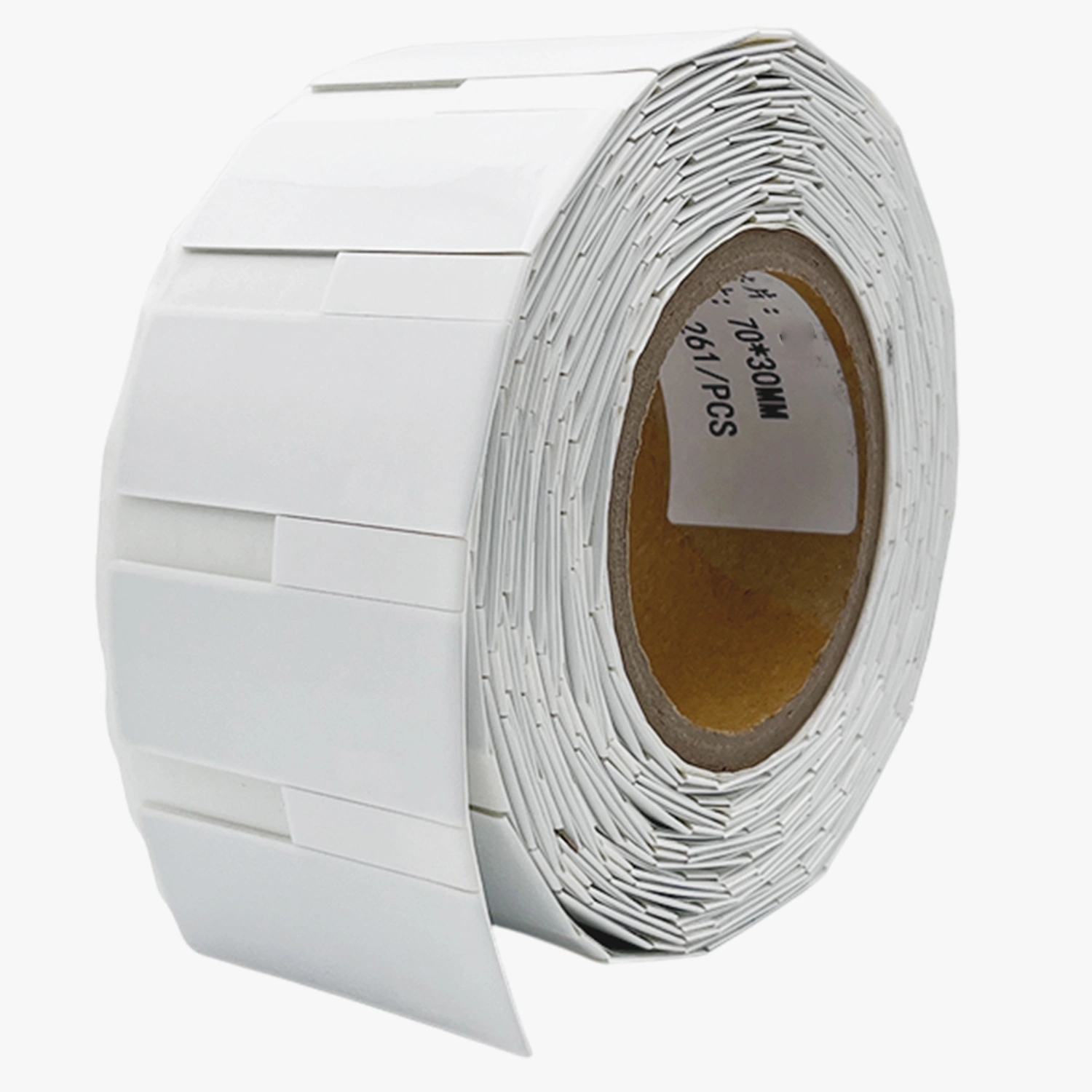

UNITP-7030 RFID Flexible Tags

Ultra High Frequency, 860-960 Mhz, RFID Flexible Tags, Size: 70mm x 30mm, Flexible and Self-Adhesive, Up to 8 mtrs Read Range, High performance RFID Label for metallic assets

Write a review
Features
Operating Frequency: FCC: 902-928MHz ETSI: 865-868 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 8m
Chip Type: Impinj Monza M730
EPC Memory: 128 bits
Enquire Now
Related Products
UHF RFID Flexible Anti-Metal Tags
UNI-10040 UHF RFID Flexible On-Metal Label/Tags
UHF RFID Flexi-On Metal Tags
UNI-10125 RFID Flexible Tags
UNI-6025 (Perfect Size Tag) RFID Mount On Metal Label Tag
Be the first to review this item
 Write a review

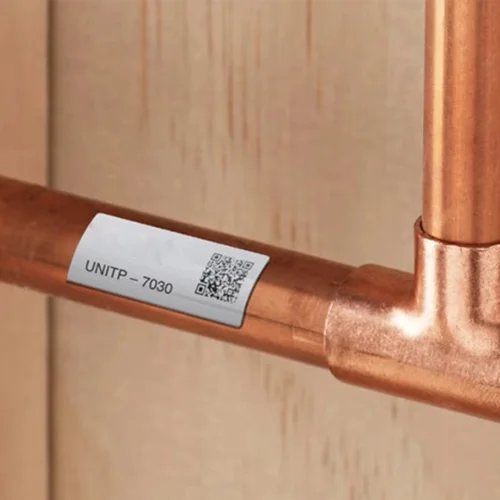

UNITP-7030 RFID Flexible Tags are passive UHF RFID tags that are designed to be used on metal surfaces and curved surfaces. Flexi on metal tags include high performance UHF RFID chips and antennae, enabling them to be read accurately and from a great distance. The flexi RFID tags are designed to operates at 860MHz to 960MHz UHF frequencies and provide a long read range of up to 8 meters. The RFID Flexible labels/tags are made from a combination of paper, polyester, and adhesive, and are designed to provide strong adhesion and reliable performance in a vast range of temperature and humidity conditions.
Specifications
Operating Frequency FCC: 902-928MHz ETSI: 865-868 MHz
Communication Protocol ISO 18000-63 and EPCglobal Gen2v2
Read Range Up to 8m
Chip Type Impinj Monza M730
EPC Memory 128 bits
Write Cycle Endurance 100,000 cycles
Data Retention 50 Years
Tag Material Synthetic Polyester
Tag Size 70mm(L) X 30mm(W) X 1mm(D)
Applicable Surface Metal Surfaces
Attachment /Mounting Method Adhesive
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
IP Ratings IP68
