RFID Rubber Tire Tracking Tags with Ultra High Frequency (865–867 MHz) and offers read range up to 5 meters, 90mm x 38mm in size. A high-performance RFID tags suitable for tyres

Write a review
Features
Operating Frequency: FCC: 902-928MHz ETSI: 865-868 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 5m
Chip Type: NXP UCode 8
EPC Memory: 128 bits
Enquire Now
Be the first to review this item
 Write a review

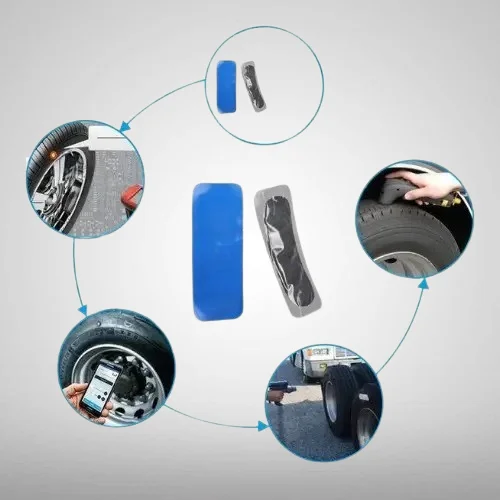

The PID-Rubber Tag UHF RFID Tire Tracking tags are used for tire identification and tracking in tire manufacturing and vehicle production centers. These tags are mounted on the inner side of the tire to get beneficial information about the tires such as tire usage, tire manufacturing date, tire life, etc.

These tags are applied by using vulcanization glue that is used in tire repair. Tire tags are available in UHF (Ultra High Frequency, 860-960MHz) and offer a 5m read range which makes tire tracking tags read easily by readers.

RFID tire tags are highly beneficial in monitoring large fleets of commercial vehicles and maintaining a record of a tire, allowing businesses to manage timely service, replacement, and reuse of tyres when they wear out.

EnCstore offers these waterproof, high heat resistant, high-pressure resistant RFID tags at competitive prices, designed and manufactured by prominent RFID manufacturer in India.

Application of UHF RFID Tire Tracking tags

• Tire Warehouse Management

• Tire Production Management

• Car Tire Tracking

Specifications
Operating Frequency FCC: 902-928MHz ETSI: 865-868 MHz
Communication Protocol ISO 18000-63 and EPCglobal Gen2v2
Read Range Up to 5m
Chip Type NXP UCode 8
EPC Memory 128 bits
Write Cycle Endurance 100,000 cycles
Data Retention 50 Years
Tag Material Rubber

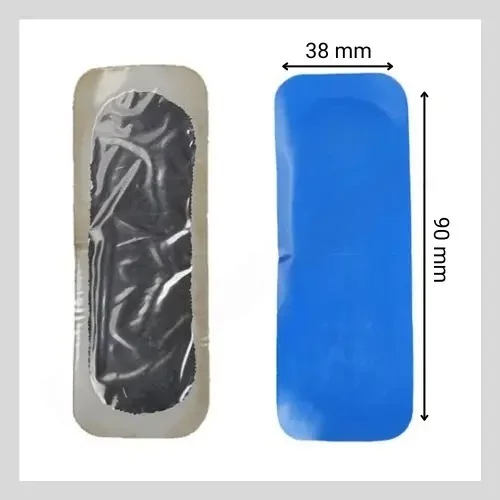

Tag Size 90mm(L) X 38mm(W)
Applicable Surface Tires
Attachment /Mounting Method Inner side of the tire
Operating Temperature -30°C to +85°C
Storage Temperature -30°C to +85°C
Application Endurance Pressure up to 5 MPa and temperature up to 200 °C
