The UHF RFID PCB Anti-metal tag works on UHF 865-867 MHz frequency range and offers up to 4.5m read range and water resistance, most suitable for Asset Tracking and Industrial Application

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 3m
Chip Type: Impinj Monza 4E
EPC Memory: 96 bits/496 bits
Enquire Now
Be the first to review this item
 Write a review

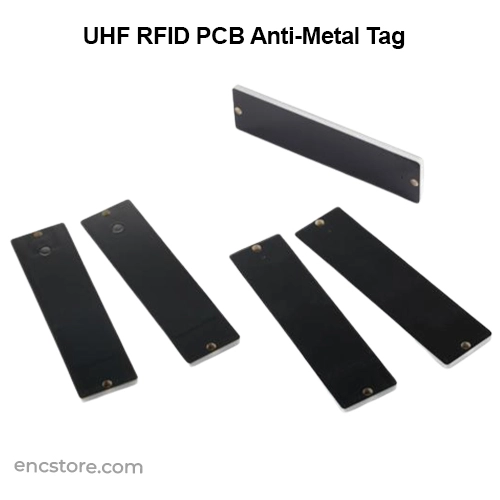

A UHF RFID PCB anti-metal tag is a type of radio-frequency identification (RFID) tag designed for long-range communication and for use in harsh industrial and outdoor environments where metals can interfere with the RF signals. The UHF RFID PCB On-metal tag are best for tagging and tracking metal assets and consist of an antenna, an RFID chip. These tags can overcomes metal and liquid interference effectively. The RFID on-metal tag has a high read/write performance and is compatible with a wide range of RFID readers and software. The tag can also be used to track personnel in high-security areas.

EnCstore offers industry-best UHF RFID PCB anti-metal tags from leading RFID manufacturers in India, at competitive prices.



What are the applications/usage of UHF RFID PCB anti-metal tags?

• Asset Tracking,

• Tool Tracking,

• Logistics and Warehouse,

• Healthcare,

• Retail, etc

Do these PCB UHF RFID Tags work on Metal Assets?

Yes, these RFID PCB Tags are specially designed for metal assets, being used in healthcare, supply chain, and manufacturing. For tracking metal assets, you can also use an RFID mount on metal tags. For example Rock-UHF Long Range Anti-Metal RFID Hard Tags.
What RFID Readers and Antennas one should buy with PCB UHF RFID Tags?

One can get the below-mentioned RFID Readers and Antennas for PCB UHF RFID Tags for metal assets.

Why buy this tag?

The RFID PCB UHF RFID Mount on-metal Tags are best for tagging and tracking mental assets. These can easily be mounted on metal surfaces with adhesive and screw mounting options.

Features of PCB Anti-metal UHF RFID Tags

  • 1. RFID Frequency: UHF 865-867 MHz
  • 2. Communication Protocols: ISO 18000-63 EPCglobal gen2 V2
  • 3. Tag Material: Polycarbonate material
  • 4. Tag size: 80mm(L) x 20mm(W) x 3.5mm (T) with 2mm hole diameter
  • 5. RFID Chip: Impinj Monza 4E
  • 6. EPC Memory: 96/496 Bits
  • 7. User Memory: 128/512 Bits
  • 8. IP Rating: 68




Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-63 and EPCglobal Gen2v2
Read Range Up to 3m
Chip Type Impinj Monza 4E
EPC Memory 96 bits/496 bits
User Memory 512 bits/128 bits
Tag Material PCB
Tag Size 80mm(L) x 20mm(W) x3.5mm(T)
Applicable Surface Metal Surfaces
Attachment /Mounting Method Adhesive or Screw
Weight 14g
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +150°C
IP Ratings IP68
