7015-UHF RFID Fabric Laundry Tags for Garments Tracking

UHF RFID Fabric laundry tags with 860-960MHz (UHF) Frequency, 70mmx 15mm in size, Lightweight and Reusable, up to 200 Washing Cycle, Sewing Mounting, Excellent Reading Rate, for Garments Tracking

Write a review
Features
Operating Frequency: FCC: 902-928MHz ETSI: 865-868 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Chip Type: NXP UCode 9
EPC Memory: 96 bits
Write Cycle Endurance: 100,000 Cycles
Enquire Now
Be the first to review this item
 Write a review

PID-LTHS7015 UHF RFID fabric laundry tags are made from high-quality fabric and attached to garments providing garment identification and tracking throughout the laundry process. The fabric RFID laundry tags are durable, waterproof, and resistant to high temperatures, and can withstand the harsh conditions of the laundry process.

RFID laundry tags can be used to identify the laundry items including uniforms, towels, bedding, and other laundry items, and provide detailed information about the laundry process, including the number of items, the number of loads, and the time elapsed with high accuracy and efficiency.

A UHF RFID linen tag operates over UHF frequency 865–867 MHz. It follows ISO 18000-6C EPC Class 1 Gen 2 communication protocol and provides a read range of up to 12m without a clear line of sight.

The UHF RFID Fabric Laundry Tags for garment tracking are used in Laundry Washing, The laundry and textile industries, Medical Apparel Management, Military clothing Management, etc.



Applications of UHF RFID fabric laundry tags

• Laundry Washing

• Medical Apparel Management

• Military clothing Management



Why choose these UHF RFID fabric laundry tags?

 UHF RFID laundry tags are a great choice for tracking and managing large quantities of laundry items quickly and efficiently as these RFID laundry tags are made of durable materials. These can withstand repeated washing and drying cycles without getting damaged.

Specifications
Operating Frequency FCC: 902-928MHz ETSI: 865-868 MHz
Communication Protocol ISO 18000-63 and EPCglobal Gen2v2
Chip Type NXP UCode 9
EPC Memory 96 bits
Write Cycle Endurance 100,000 Cycles
Yield 100%
Tag Material Polycotton fabric base / 100 % Polyester

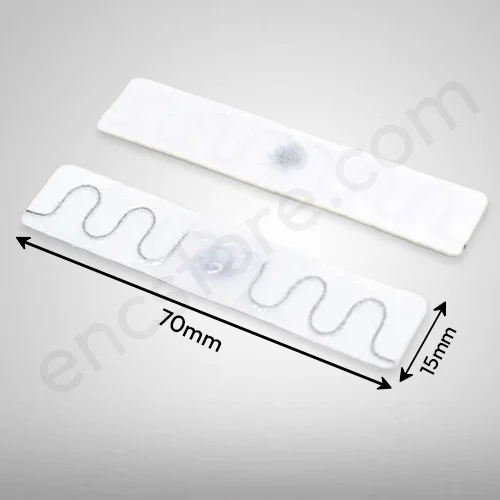

Tag Size 70mm(L) x 15mm(W) x 2mm(T)
Applicable Surface Linen and garments
Attachment /Mounting Method Thermal Patching / Heat -sealing/ Sewing
Patching instructions Temperature- +204 °C Pressure- 5 bar(0.5kg/cm2) Time- 12 sec
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +120°C
Drying 160°C / 30 min
Tunnel Washer 90°C / 15 min
Tunnel finisher 185°C / 20 min
Washing Cycle 200
