Strip Tag: Long read range UHF RFID Pallet Tracking Tag, 865-867Mhz frequency, upto 18mtr read range, size:120mmx22mm, rivet and screw mounting, IP67 rating, high performance

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 18m
Chip Type: Impinj Monza M730/ M750
EPC Memory: 96 bits
Enquire Now
Be the first to review this item
 Write a review

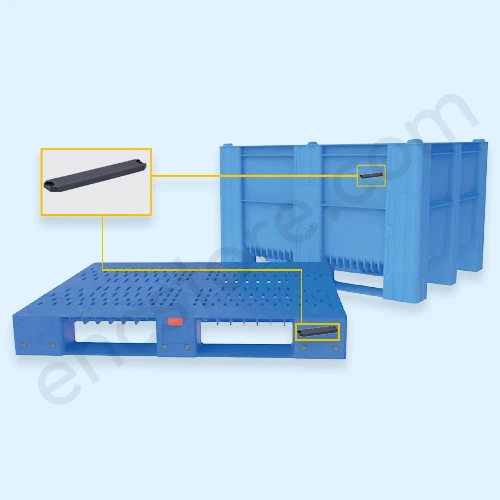

Get the UHF RFID Anti-Metal Strip Tag, designed to provide reliable and efficient tracking solutions for wooden and plastic pallets in warehouses. Operating within the 865-867MHz frequency range, these tags offer rugged design, superior performance, and versatility in a variety of industrial applications including logistics and supply chain. With a maximum reading range of 18 meters, RFID strip tags make it easier to quickly and easily identify and track returnable transport items (RTIS) which are crucial for supply chain businesses, which improves operational effectiveness and reduces the possibility of inventory shrinkage.

EnCstore offers UHF RFID strip tags that are simple to use, attachable with magnets, glue, and rivets, and suitable for all pallet tracking applications. The tag's wide scan range and fast data transfer speed enable quick and accurate inventory counts, decreasing the need for manual labor and the possibility of errors.



What are the Applications of RFID Strip Tags?

•  RFID-based Pallet tracking

•  RTIs, containers, and crates tracking

•  Inventory management

•  Supply chain, logistics, and manufacturing applications

Features of RFID Strip Tags: RFID Pallet Tracking Tags

RFID Frequency: UHF 865-867 MHz

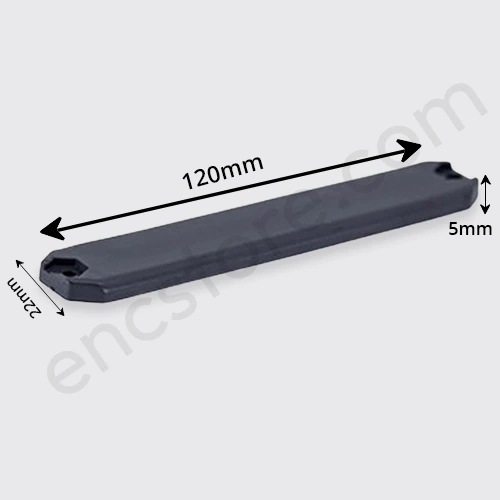

Tag Material: ABS PlasticTag size: 120mm(L) x 22mm(W) x 5mm(T)

RFID Chip: Impinj Monza M730/M750

EPC Memory: 96 Bits

User Memory: 32 Bits

Where to buy the RFID Pallet Tracking Tags?

One can buy RFID Strip tags for pallet tracking from EnCstore.com, an e-marketplace for RFID and Barcoding products such as labels, scanners, printers, and antennas, available at competitive prices with pan-India delivery.



Do these RFID Strip Tags work on Metal Assets?

No, these RFID Strip tags are specially designed for pallets and RTIs made of non-metal materials, being used in retail and supply chain.  For tracking metal assets, you can use an RFID mount on metal tags. For example Rock-UHF Long Range Anti-Metal RFID Hard Tags.



What RFID Readers and Antennas one buy with RFID Strip tags for pallet tracking?

One can get the below-mentioned RFID Readers and Antennas for RFID Pallet tags:

1. Zebra FX9600 RFID Reader

2. RFD40 RFID handheld SLED Reader by Zebra

3. Zebra AN480 UHF RFID Antenna

4. EM45 RFID Mobile Computer

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-63 and EPCglobal Gen2v2
Read Range Up to 18m
Chip Type Impinj Monza M730/ M750
EPC Memory 96 bits
User Memory 32 bits
Write Cycle Endurance 100,000 cycles
Data Retention 50 Years
Tag Material ABS
Tag Size 120mm(L) x 22mm(W) x 5mm(T)
Applicable Surface Metal Surfaces
Attachment /Mounting Method Screw
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
IP Ratings IP68
