Long Range Passive RFID Tags, Applicable on Metal Surface, Frequency: 865–867 MHz, suitable for Tool Tracking, Asset Tracking, Industrial Application

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Read Range: Up to 10m
Chip Type: Alien Higgs 3
Tag Material: PC
Enquire Now
Be the first to review this item
 Write a review

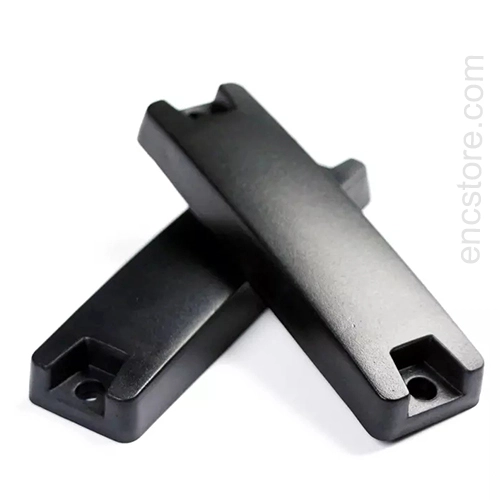

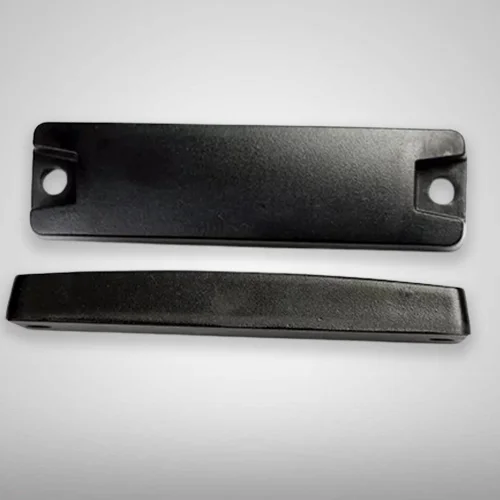

UHF Long Range Anti Metal RFID Tags are designed to provide long-range identification and tracking of assets, even when they are in metal enclosures or environments. These tags are designed to be robust, durable, and resistant to harsh environments, and can survive in extreme temperatures and harsh conditions. They have a large read range of up to 6 meters and are ideal for asset tracking in warehouses and industrial settings. They are also well-suited for applications such as pallet tracking, tool tracking, and asset tracking. The tags also feature an anti-metal layer which provides protection from metal interference and allows them to be used in metal-rich environments.

Application: Inventory management, Asset, and Tool Tracking, Medical Equipment, Access Control, Warehouse Storage Rack, Manufacturing, Container Tracking, etc

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Read Range Up to 10m
Chip Type Alien Higgs 3
Tag Material PC

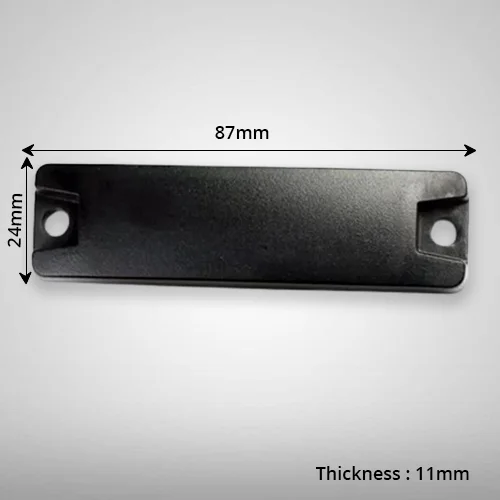

Tag Size 87mm(L) x 24mm(W) X 11mm(T)
Applicable Surface Metal Surfaces
Attachment /Mounting Method Adhesive or Screw
Weight 38g
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
IP Ratings IP68
