The Smartrac AD-130U8 UHF RFID Wet Inlay, powered by NXP UCode8, is a high-performance solution for healthcare and apparel applications, 45mm x 7.5mm size and operate within the 865-867MHz frequency

Write a review
Features
Brand: AD Corp
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Chip Type: NXP UCode 8
EPC Memory: 128 bits
User Memory: 128 bits
Enquire Now
Be the first to review this item
 Write a review

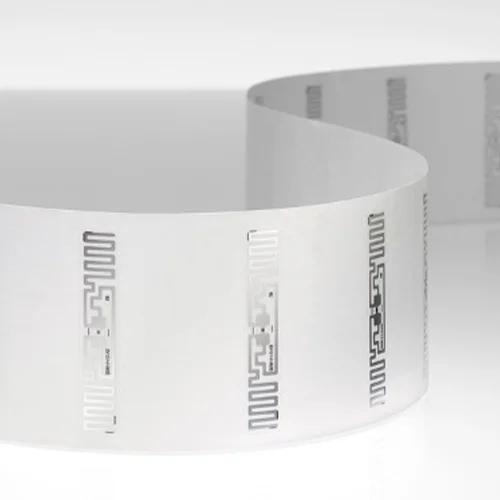

The Smartrac AD-130U8 UHF RFID Wet Inlay featuring the NXP UCode8 chip. Designed for high efficiency and reliability, this RFID wet inlay provides excellent performance with a read range of up to 12 meters, making it ideal for various applications.

The Smartrac (Avery Dennison AD-130U8, UCode8) operates in the UHF frequency range of 860-960 MHz and supports the ISO 18000-6C EPCGlobal Gen2v2 protocol, ensuring efficient and accurate tag detection. Its compact and durable design is perfect for environments like retail, logistics, and asset tracking, where high-performance RFID is crucial.

Equipped with the NXP UCode8 IC, this tag offers robust data storage and transmission capabilities, along with advanced features like privacy mode to enhance security and prevent unauthorized access. The Smartrac AD-130U8 UHF RFID wet inlay's high RF sensitivity ensures reliable operation in diverse conditions, providing a versatile solution for tracking and managing inventory and assets.

These Smartrac AD-130U8 UHF RFID Wet Inlays are available in various memory configurations and are known for their high quality and dependable performance. Explore the advantages of the Smartrac AD-130U8 for your RFID needs at EnCstore.com, where you can get high-quality RFID solutions at competitive prices.

Application of Smartrac AD-130U8 UHF RFID Wet Inlay

• Supply Chain and Logistics Management

• Retail Inventory Management

• Asset Tracking

• Document Tracking

• Manufacturing and Production

• Event and Ticket Management

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Chip Type NXP UCode 8
EPC Memory 128 bits
User Memory 128 bits
TID Memory 96 bits
Tag Material Wet Inlays/Paper Label/Polyester Label

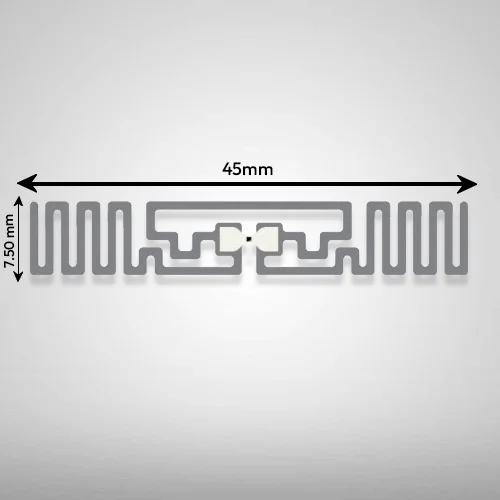

Antenna Size 45mm(L) x 7.50 mm(W)
Die cut dimensions: 47mm(L) x 9.50mm(W)
Applicable Surface Glass, Plastic, Wood, Cardboard
Attachment /Mounting Method Adhesive
Operating Temperature -40°C to +85°C
