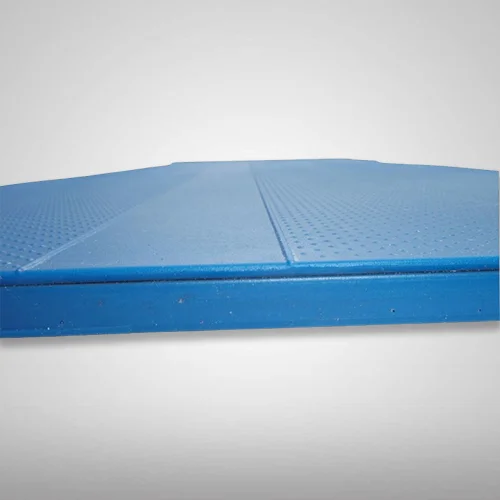

Time-7 SlimLine A5530 UHF RFID Ground Mat Antenna (LP)

Linear Polarized, 3W max input power, 9.5 dBiC far-field gain, frequency: 865–867 MHz Ultra High Frequency(UHF)

Write a review
Features
Brand: Times 7
Frequency Range: 865–867 MHz Ultra High Frequency(UHF)
Dimensions (L x W x D): 1220 x 600 x 12 mm
IP Rating: IP66
Gain: 10dBi
Mount: Ground
Enquire Now
Related Products

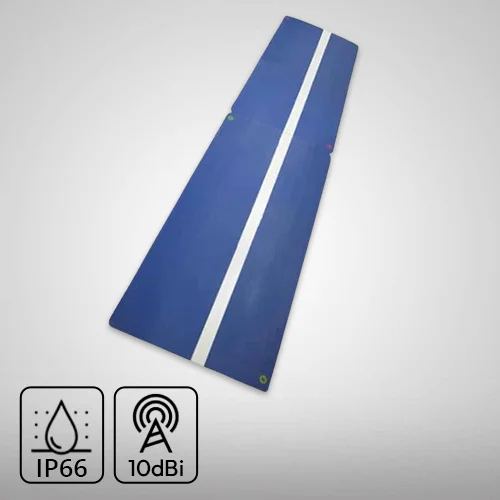

Time-7 SlimLine RTAS UHF RFID Race Timing Antenna
Be the first to review this item
 Write a review

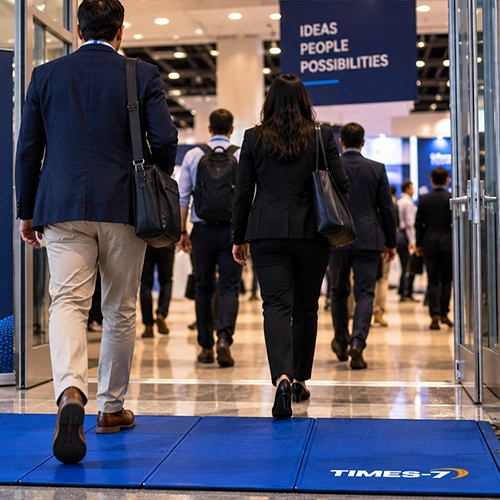

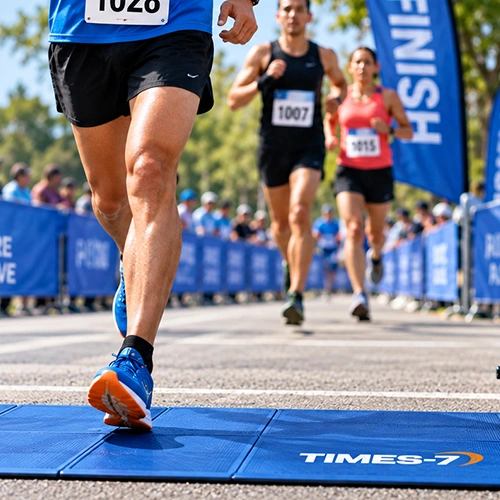

SlimLine A5530 UHF RFID Ground Mat Antenna is a high-performance linearly polarized antenna that operates in 865–867 MHz ETSI band, and can handle the weight of runners and motorbikers as well as emergency vehicles, garbage trucks, etc. Total thickness of A5530 antenna is just 12 mm, it is ideal for applications which involve moving people,vehicles, products or assets where side antennas are not feasible.

Specifications
Frequency Range 865–867 MHz Ultra High Frequency(UHF)
Dimensions (L x W x D) 1220 x 600 x 12 mm
IP Rating IP66
Gain 10dBi
Mount Ground
Maximum Input Power 6W
Nominal Impedance 50 ohm
Operating Temperature 0° to +50°C
Storage Temperature -30° to +60°C
Connector type Connector type
Front to Back Ratio 20dB
Antenna Linear
