R6 UHF RFID Sled Reader, Android Bluetooth RFID Reader

The Chainway R6 UHF RFID Sled Reader is a high-performing one-piece solution, RFID scanner with Bluetooth and Barcode scanning capabilities easily connects with Android/iOS smartphones and terminals

Write a review
Features
Air Interface Protocol: GS1/EPCglobal UHF Class 1 Gen 2 (ISO 18000-63)
Operating Frequency: UHF (860 - 960 MHz), region dependent
Transmit Power (POE): +10 to +30 dBm
Transmit Power (External DC Power): +10 to +30 dBm (Listed/Certified power supply)
Max Receive Sensitivity: -84 dBm
Enquire Now
Be the first to review this item
 Write a review

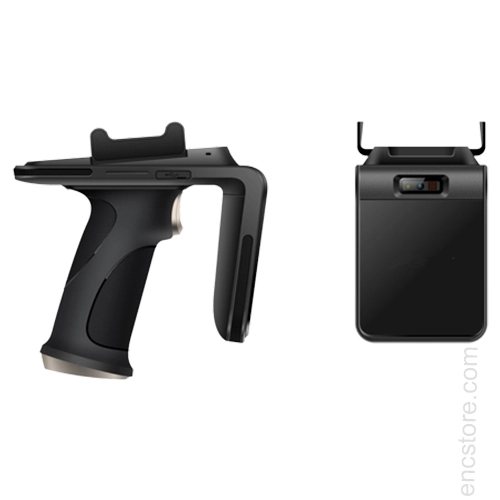

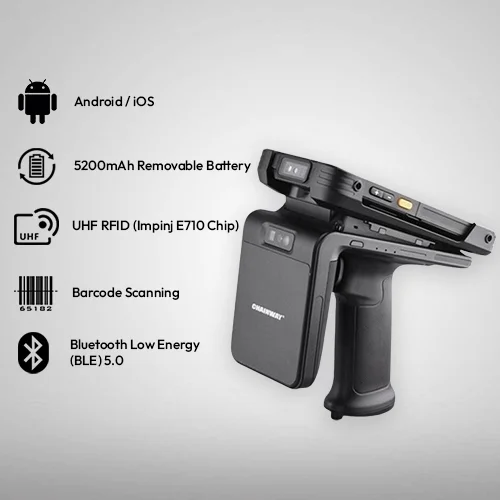

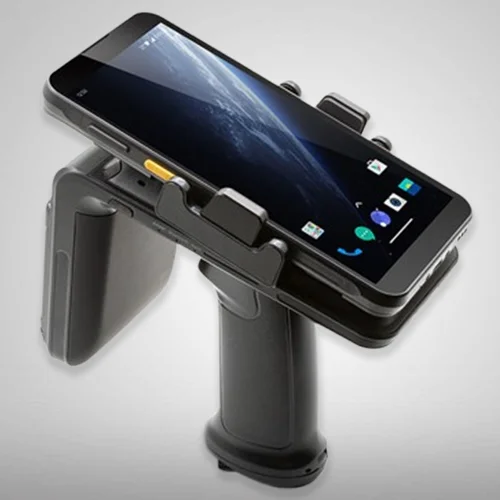

The R6 UHF RFID Sled Reader by Chainway is designed to provide a piece solution with smartphone / PDA, easily paired with Android/iOS-based smartphones and terminals.

The built-in Impinj E710 / R2000 chip empowers it with powerful UHF reading and writing capabilities, allowing it to read and write UHF RFID tags up to 30m.

An R6 UHF RFID Sled Reader is a handheld device, equipped with a large antenna, and secure hand grip for easy and efficient operations. The UHF SLED RFID reader is compliant with ISO 18000-6C and EPCglobal gen2v2, most suitable for high-volume operations in a warehouse, retail store, or other large facilities.

We offer the Chainway R6 UHF RFID Sled Reader at the industry best price, an efficient and cost-effective tool to track items, with the ability to read tags even in difficult environments.

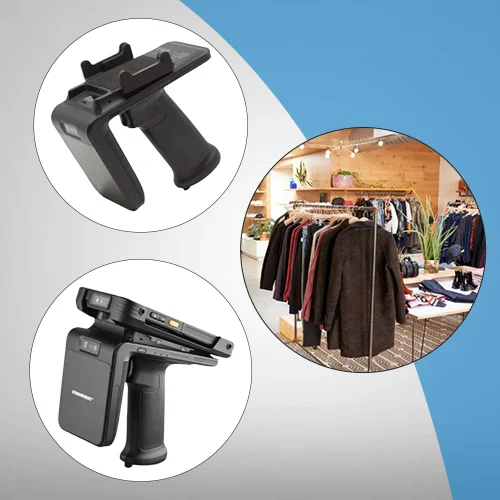

 Applications of Chainway R6 UHF RFID SLED Reader

  Asset Tracking in Retail

  Access Control and security

  Supply chains and Logistics

  Healthcare

  Automotive and manufacturing

  Agriculture

Specifications
Air Interface Protocol GS1/EPCglobal UHF Class 1 Gen 2 (ISO 18000-63)
Operating Frequency UHF (860 - 960 MHz), region dependent
Transmit Power (POE) +10 to +30 dBm
Transmit Power (External DC Power) +10 to +30 dBm (Listed/Certified power supply)
Max Receive Sensitivity -84 dBm
Max Read Rate Up to 200 tag reads per second
GPIO 4 GPI optically isolated 3-30V/ 4 GPO optically isolated, 0-30V, non-isolated 5V, 100mA supply (DB-15)
Power Source (POE) IEEE 802.3af
Power Source (External DC Power) Listed/Certified power supply, AC-DC power supply rated for 24Vdc/2.1A
Dimensions 151mm(L) x 76mm(W) x 132mm(D)
Power 5200mAh Removable Battery
Interfaces USB 3.0 Type-C
Indicator LED Power, Work, Bluetooth
Product Material Plastic
Colour Black
SDK Android / iOS
Language Java / Objective-C
Operating Temperature -20 ºC to +50 ºC
Storage Temperature -40 ºC to +70 ºC
Drop Specification Multiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range
IP Rating IP54
Antenna Circular Polarized Antenna (4dBic)
Power 1W (30dBm, support +5~+30dBm adjustable)
Fastest Read Rate 900+ tags/sec
Max Read Range Up to 30mtrs
Bluetooth Bluetooth Low Energy (BLE)
