R2 Swing UHF RFID Reader, 4dBi Linear Polarized Antenna, 865-867Mhz, 5200mAh Powerful Battery, Micro-USB Interfaces, Upto 15m Read Range, Bluetooth Wireless Technology, Android/iOS SDK

Write a review
Features
Operating Frequency: 865-867 Mhz, Ultra High Frequency (UHF)
Air Interface Protocol: ISO 18000-6C EPC Clas 1 Gen 2
Antenna Type: Linear Polarized antenna (4dBi)
Bluetooth: Bluetooth 4.0, BLE
Interfaces: Micro-USB
Enquire Now
Be the first to review this item
 Write a review

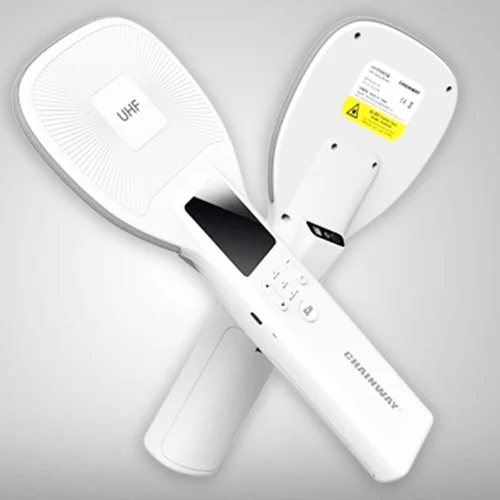

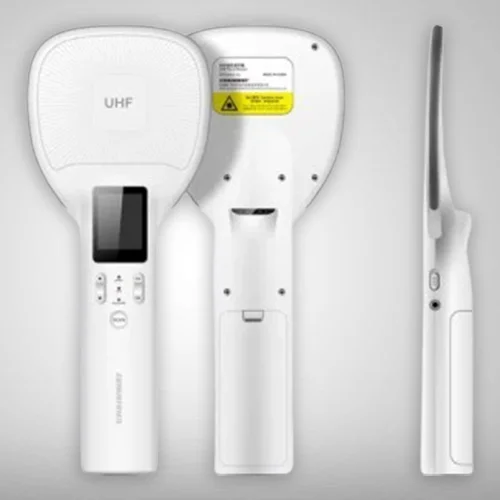

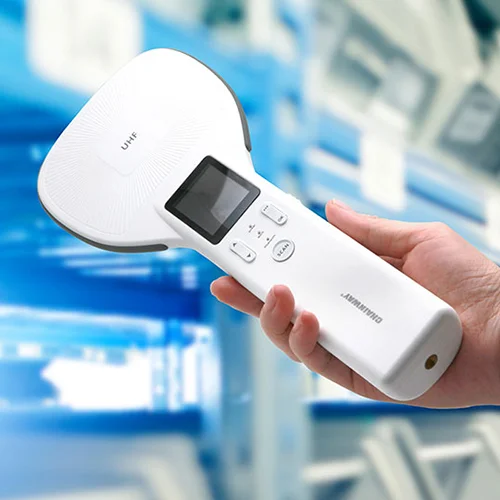

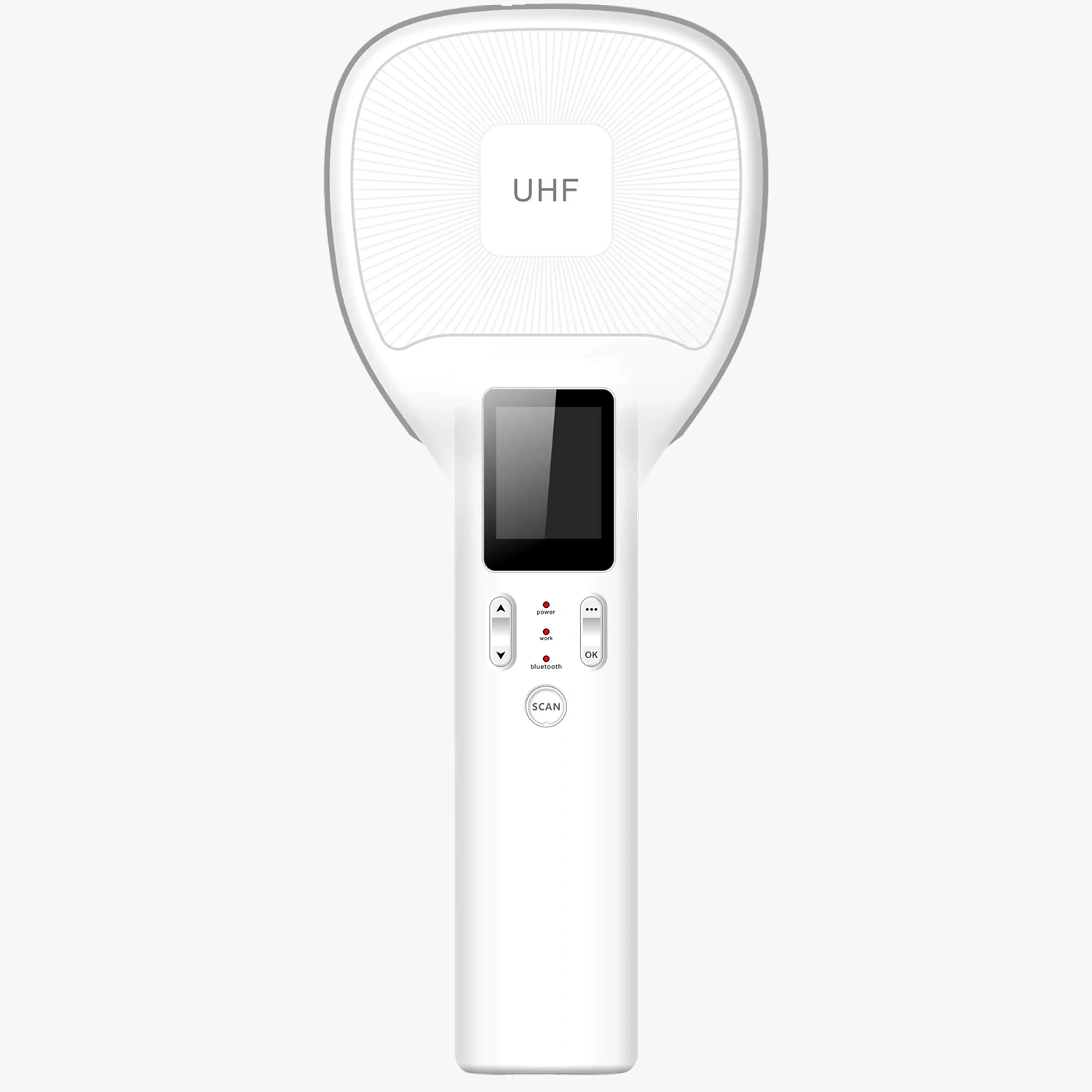

The R2 Handheld Bluetooth UHF RFID Reader is a portable and powerful UHF reader that can be used to read and write various RFID tags. It is compatible with the Impinj E710 / R2000 chip, has a read distance of 31m outside, and can store up to 50,000 tags.  It also supports Bluetooth communication and can connect to your device via Bluetooth Low Energy (BLE) or Wi-Fi for data transmission. It is equipped with a smart card reader, an LCD display, and a rechargeable battery. The R2 Bluetooth RFID Reader is lightweight and easy to carry, making it ideal for multiple applications.

Application

• Inventory management,

• Asset management,

• Supply chain management,

• Automatic identification,

• Retail & consumer goods,

• Warehousing & logistics,

• Healthcare, and many more.

Specifications
Operating Frequency 865-867 Mhz, Ultra High Frequency (UHF)
Air Interface Protocol ISO 18000-6C EPC Clas 1 Gen 2
Antenna Type Linear Polarized antenna (4dBi)
Bluetooth Bluetooth 4.0, BLE
Interfaces Micro-USB
Dimensions 282mm x 117.5mm x 32 mm
Material Plastic
Operating Temperature -20 °C to 50 °C
Fastest Read Rate 900+ tags/sec
Max Read Range up to 31mtrs
SDK Android / iOS
Display 1.77 inch, 128 x 160
Indicator LED Power, Work, Bluetooth
Colour White
Operating Temperature -20 °C to 50 °C
Storage Temperature -40 °C to 70 °C
