Get the PCB2510 UHF Mount On-Metal RFID Tag, UHF 865-867 MHz frequency, long read range, size 25mm x 10mm, specially designed for RFID metal asset tracking, and tool tracking.

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Chip Type: Alien Higgs 3/ NXP Ucode 8
EPC Memory: 480 bits
User Memory: 512 bits
Enquire Now
Be the first to review this item
 Write a review

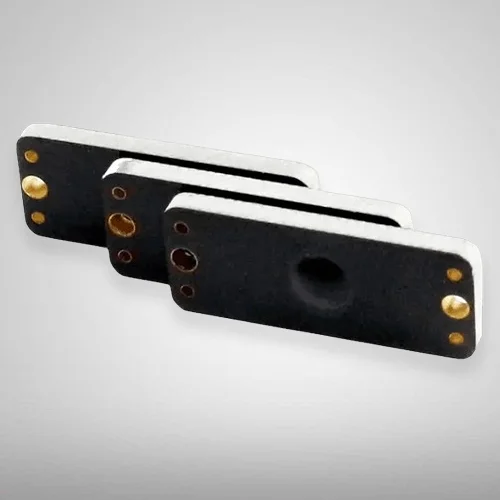

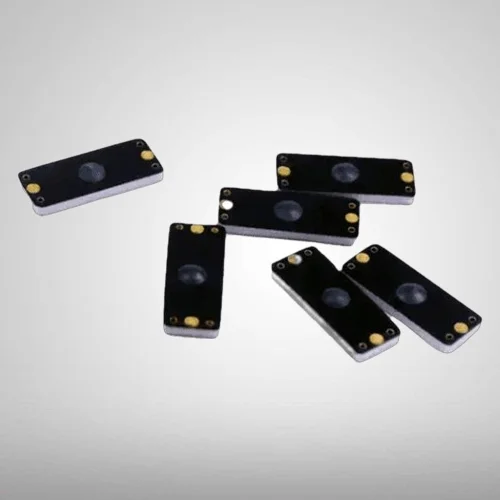

The PCB-2510 UHF Mount On-Metal RFID Tag is a passive UHF RFID tag that is designed for mounting on metal surfaces. These RFID Tag for metal surfaces is made of a durable polycarbonate material that can withstand harsh environments. The RFID on-metal tag also has a unique antenna design that helps to improve the read range on metal surfaces. It is a small, lightweight tag that is easy to install and can be used for a variety of applications, including asset tracking, inventory management, and access control.

The PCB-2510 RFID Tag for metal surfaces has a read range of up to 5 meters and operates on 865-967 MHz ultra-high-frequency. It is also resistant to water, dust, and shock. The tag is available in a variety of configurations, including with or without an adhesive backing.

If you are looking for a passive UHF RFID tag that is designed for mounting on metal surfaces, the PCB-2510 UHF RFID Mount On-Metal Tag is a good option. EnCstore offers high-performance UHF Mount On-Metal RFID Tag by the industry-best RFID manufacturer, at the best prices.



What are the applications of PCB UHF Mount On-Metal RFID Tags?

• Metal Asset Tracking, Tool Tracking

• Logistics and Inventory Management

• RTIs and Container Tracking

• Automotive parts tracking

• Medical instrument tracking



Where to buy the PCB RFID Mount on-Metal Tags?

You can buy the PCB2510 UHF Mount On-Metal RFID Tags from EnCstore.com at competitive prices. These tags are also available in many sizes, and fit for distinct types of metal asset tracking.



Features of PCB Mount on-metal UHF RFID Tags

• RFID Frequency: UHF 865-867 MHz

• Communication Protocols: ISO 18000-63 EPCglobal gen2 V2

• Tag Material: Polycarbonate material

• Tag size: 25mm(L) x 10mm(W) with 2mm hole diameter

• RFID Chip: Alien Higgs 3/ NXP Ucode 8

• EPC Memory: 480 Bits

• User Memory: 512 Bits

Do these PCB UHF RFID Tags work on Metal Assets?

Yes, these RFID PCB Tags are specially designed for metal assets, being used in healthcare, supply chain, and manufacturing. For tracking metal assets, you can also use an RFID mount on metal tags. For example Rock-UHF Long Range Anti-Metal RFID Hard Tags.



What RFID Readers and Antennas one should buy with PCB UHF RFID Tags

One can get the below-mentioned RFID Readers and Antennas for PCB UHF RFID Tags for metal assets.

1. Zebra FX9600 RFID Reader

2. RFD40 RFID handheld SLED Reader by Zebra

3. Zebra AN480 UHF RFID Antenna

4. EM45 RFID Mobile Computer

 Why buy this tag?

The RFID PCB UHF RFID Mount on-metal Tags are best for tagging and tracking mental assets. These can easily be mounted on metal surfaces with adhesive and screw mounting options.

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-63 and EPCglobal Gen2v2
Chip Type Alien Higgs 3/ NXP Ucode 8
EPC Memory 480 bits
User Memory 512 bits
Write Cycle Endurance 100,000 cycles
Data Retention 50 Years
Final Inspection 100 % Tested
Tag Material FR-4
Tag Size 25mm(L) x10mm(W), (Hole: D2mmx2)
Applicable Surface Metal Surfaces
Attachment /Mounting Method Adhesive or Screw
Weight 1.5g
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
IP Ratings IP68
