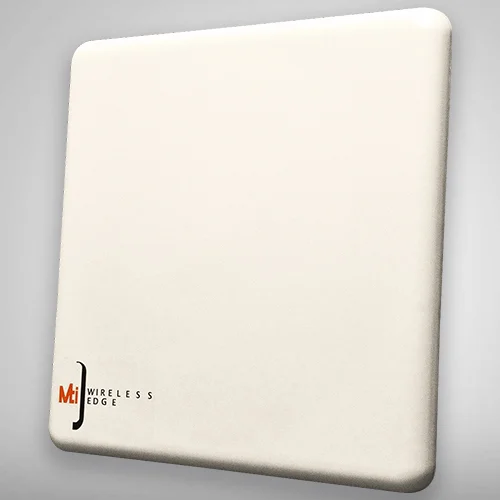

MTI Wireless Edge RFID Antenna, 13dBi, Linear Polarization

The MTI RFID Antenna MT-243009/N, linear polarization, offers 13dBi gain and directional performance, featuring an N-type Female Connector, operating in the 865-870 MHz frequency, and an IP67 rating

Write a review
Features
Operating Frequency: 860-870 MHz, Ultra High Frequency
Polarization: Linear Vertical or Horizontal
Connector: N-Type Female
Dimensions: 450mm(L) x 450mm(W) x 35mm(D)
Gain: 13dBi
Enquire Now
Be the first to review this item
 Write a review

MTI RFID antenna is a high performance solution specially designed for long range RFID application, such as inventory management, access control, and supply chain tracking. MTI RFID antenna operates within the 865-870 MHz frequency bands and is equipped with a directional antenna, providing focused signal strength for precise tracking. It comes with an N-type Female Connector, ensuring compatibility with a wide range of RFID systems. Built for outdoor environments, it boasts an IP67 rating, offering protection against dust and water, making it ideal for industrial and harsh conditions.

Specifications
Operating Frequency 860-870 MHz, Ultra High Frequency
Polarization Linear Vertical or Horizontal
Connector N-Type Female
Dimensions 450mm(L) x 450mm(W) x 35mm(D)
Gain 13dBi
VSWR 1.4:1 max
3 dB Beam Width 37° typ
Side Lobe Level -15 dB
Cross Polarization -20 dB max
F/B Ratio -15 dB max
Input Impedance 50 ohm
Input Power 6 W max
Lightning Protection DC Grounded
Weight 2 Kg max
Radome Plastic
Base Plate Aluminum with chemical conversion coating
IP Rating IP67
