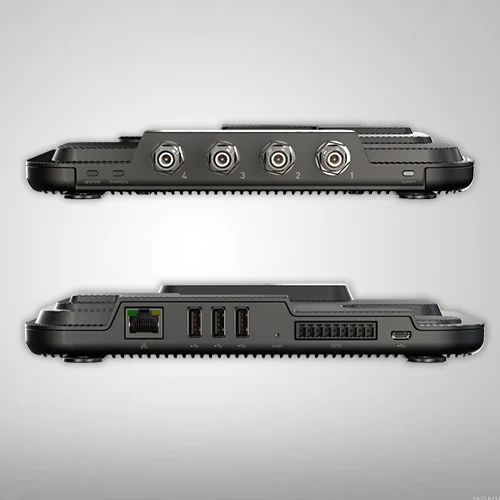

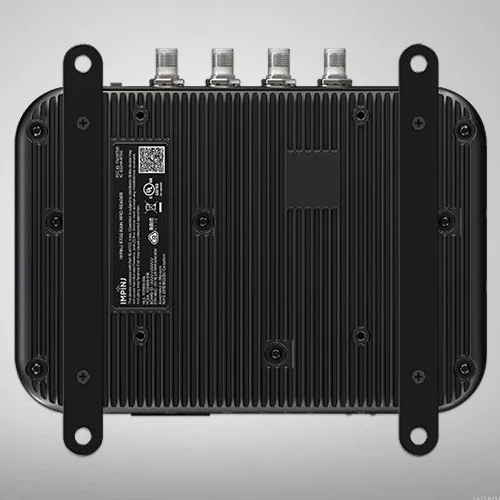

Impinj R720 RAIN RFID Reader - Fixed Mount, 4 Antenna Ports

Buy the Impinj R720 RAIN RFID Reader, an IoT-enabled POE RFID Reader offering Ethernet, MQTT support, a read rate of 1100 tags/sec, 33 dBm power, 1.4 GHz processor

Write a review
Features
Brand: Impinj
Operating Frequency: 865 - 928 MHz
Communication Protocol: EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63)
Transmit Power: PoE+: 10 - 33 dBm max, PoE: 10 - 20 dBm max
Max Receive Sensitivity: -93 dBm CISC 90% PSR
GPIO: 2 in / 3 out
Enquire Now
Be the first to review this item
 Write a review

The R720 RAIN RFID Fixed Reader by Impinj Inc. is a high performance RFID reader designed enterprise-grade RAIN RFID deployments, tracking large volume of inventory and supply chain operations. The Impinj R720 fixed readers comply with the ISO 18000-63, EPCglobal Gen2v2 standards, and offer a long read range, up to 30 feet and a high read rate, up to 1100 tags per second.

The R720 fixed-mount RFID readers by Impinj are perfect for high-volume retail, warehousing, and logistics operations. These are capable of capturing information from RAIN RFID tags with high accuracy in all sorts of enterprise RAIN RFID deployment.

We offer Impinj R700 series readers at industry-best prices, R720 readers in 4 antenna ports configuration, -93dBm receive sensitivity, 33 dBm power, and 1.4 GHz quad-core processor. These fixed RFID readers are perfectly suited for heavy, rugged uses in retail, manufacturing, supply chain, and logistics due to its rugged metal design and high performance.

Applications of Impinj R720 Fixed RFID Readers

Retail Asset Tracking

Manufacturing and Supply Chain

Inventory Management

Warehouse operations

Logistics Management and Transportation

Automotive Industry

Production assembly line, WIP

Specifications
Operating Frequency 865 - 928 MHz
Communication Protocol EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63)
Transmit Power PoE+: 10 - 33 dBm max, PoE: 10 - 20 dBm max
Max Receive Sensitivity -93 dBm CISC 90% PSR
GPIO 2 in / 3 out
Memory 1 GB Flash, 1 GB RAM
Processor Quad-Core 1.4 GHz ARM53 Processo
Material Die-cast Aluminum
Dimension With mounting brackets: 215mm(L) x 187mm(W) x 30mm(D), Without brackets: 214mm(W) x 149mm(D) x 30mm(H)
Antenna Ports 4 monostatic ports (RP-TNC)
Mounting Wall Mounting
Weight 2.12 lb, 0.96 kg
