HLT- UHF RFID Headlamp Tag for Two-wheelers

UHF RFID Headlamp Tag featuring an operating frequency of 865-867MHz, a read range of up to 12 meters, mounted on a vehicle headlamp, Size 100mm X 17mm, Suitable for Headlamp Application

0 reviews

Write a review

Be the first to review this item

Write a review

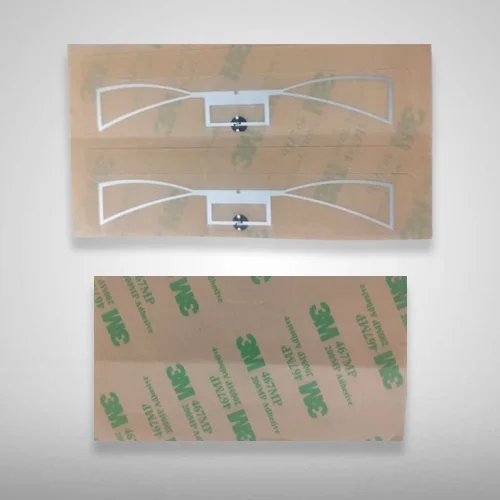

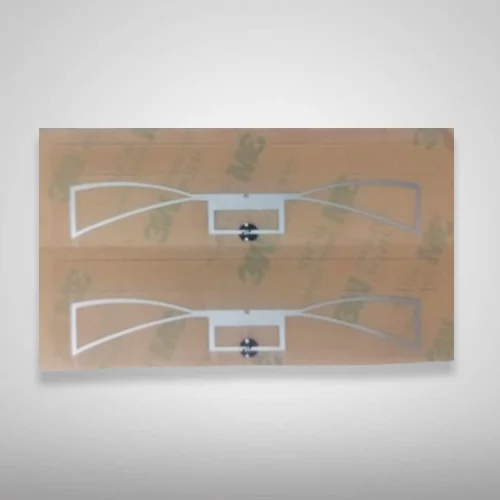

The UHF RFID headlamp tag is specially designed for two-wheelers, mostly deployed for vehicle tracking and parking management applications that use RFID technology. The HLT UHF RFID tag works on UHF 865-867 MHz frequency and supports ISO 18000-63 EPCglobal gen2 V2 protocols. These headlamp tags are designed with an Impinj Monza 4QT RFID chip and offer large EPC memory of 128 bits and user memory of 512 bits and can store vehicle details and owner details. These tags can also be integrated with RFID parking management systems and offer automation in parking management and efficient space utilization. These RFID labels can be easily attached to vehicle headlamps with a strong adhesive on the back of the label. These labels are designed with translucent polyester material and come in 100mm x 17mm size. Applications of HLT- UHF RFID Headlamp Tag for Two-wheelers • Parking management • Vehicle identification and tracking • Toll collection
Specifications
Operating Frequency	865 - 867 MHz
Communication Protocol	ISO 18000-63 and EPCglobal Gen2v2
Read Range	Up to 18m
Chip Type	IMPINJ Monza 4QT
EPC Memory	128 bits
User Memory	512 bits
Write Cycle Endurance	100,000 cycles
Data Retention	EEPROM data retention of 10 years.
Tag Material	Translucent Polyester
Tag Size	100mm(L) X 17 mm(W)
Applicable Surface	Vehicle headlamp

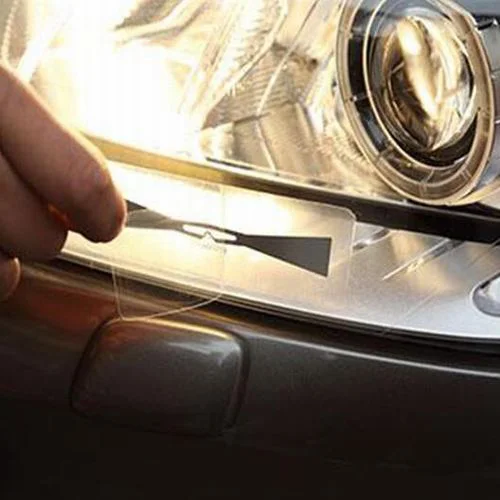

Attachment /Mounting Method	Adhesive
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
