Wired fixed mount barcode scanner, 2D Area Imager, IP Rating 65, High scan accuracy, Vertical and Standard cameras, Compact industrial scanner

Write a review
Features
Connectivity Type: Wired(Corded)
Type of operation: Hands Free
Operating Current: Max 5A
Scanning Range: 22-480 mm
Input voltage: 10Vdc-30Vdc
Enquire Now
Be the first to review this item
 Write a review

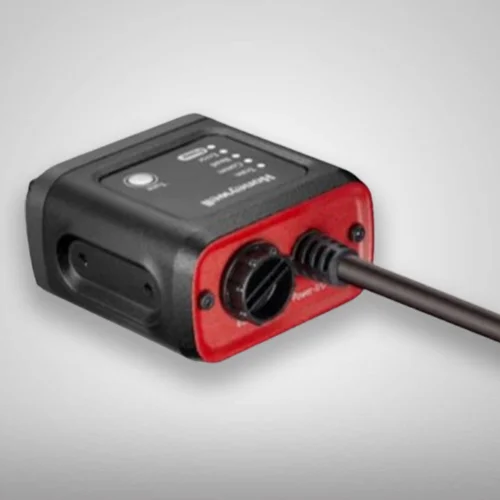

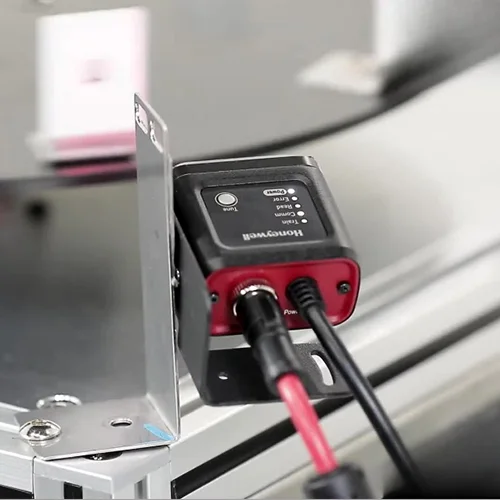

HF800 Fixed-mounting 2D Industrial Scanner capable of reliably reading all types of 1D and 2D codes. Its small size makes it suitable for use in small industrial spaces, and its IP65 rating assures that it can handle all kinds of harsh and difficult work situations. It enables image configuration to be finished with a single button, considerably increasing the convenience of configuring the reader.

Application:  Logistics, Event management, manufacturing, medical treatment and Healthcare facilities, and Retail Stores.

Specifications
Connectivity Type Wired(Corded)
Type of operation Hands Free
Operating Current Max 5A
Scanning Range 22-480 mm
Input voltage 10Vdc-30Vdc
Scan Pattern square
Scanner Mount Fixed Mount
Dimensions 54.5mm x 52.5mm x 29mm
IP Rating IP65
Usage Barcode Scanning
Form Factor Compact industrial scanner
Decode Capability 2D Barcodes, 1D Barcode, DPM, QR Code
Operating Temperature 0-50°C
Application Logistic, Event management, Retail Store management

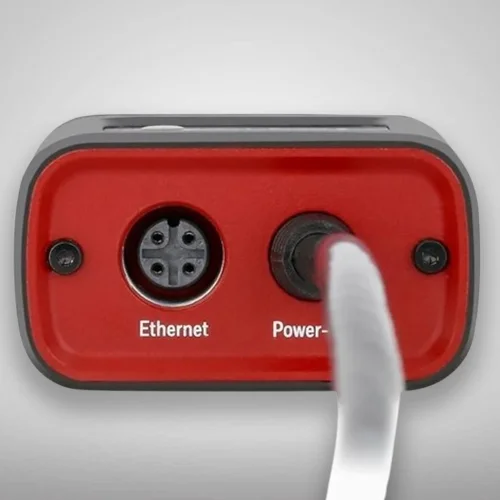

Interface Ethernet, RS485, RS-232
