High Frequency/Mifare, 13.56 MHz,, Ethernet PoE Reader, Internal antenna, card reader, suitable for Home Office time recording, Payment Systems

Write a review
Features
Operating Frequency: 13.56 Mhz, High Frequency (HF)
Interface: Ethernet (POE), RS232/485, USB 2.0
Antennas: Internal
Relay: 1.5A/24V
Power supply: +8V to +60V DC
Enquire Now
Be the first to review this item
 Write a review

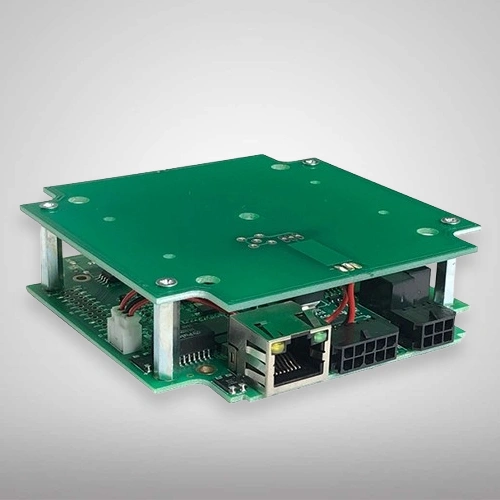

HF/Mifare RFID Ethernet PoE Reader is a very practical solution for all applications that need to be set up quickly and easily. The PoE RFID reader can read and write standard ISO14443 RFID tags. To put the reader into operation, only the Power-Over-Ethernet (PoE) network cable must be connected. The data transfer and power supply take place via this connection. As a result, no second line (for power supply) is necessary, which saves a great deal of effort and costs. For example, you can connect the reader in your home office, to the PoE network and automatically record the working hours of your employee with the RFID tag to the PoE reader.

Application: Home Office time recording, Payment Systems, and Automatic registration of goods/products.

Specifications
Operating Frequency 13.56 Mhz, High Frequency (HF)
Interface Ethernet (POE), RS232/485, USB 2.0
Antennas Internal
Relay 1.5A/24V
Power supply +8V to +60V DC
Memory SD 4GB
Operating Temperature -30 °C to 85 °C
Dimension (LxWxT) 100mm x 100mm x 35mm
Display Type No Display
Type of Reader Card Reader
Country of Origin Made in India
