High Frequency RFID Inlay Tag, Excellent Read Range, Quick and easy installation, Antenna Size: 26x11mm, High Performance, Rugged and waterproof design

Write a review
Features
Operating Frequency: 13.56 Mhz
Material: Paper

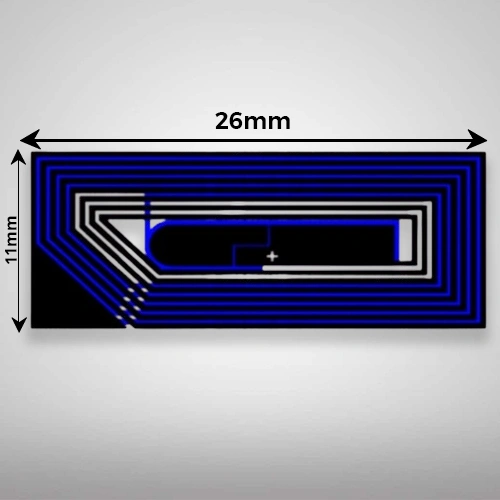

Antenne Size: 26mm x11mm
Wet Inlay Label: 30x15mm(customized)
RFID Standard: ISO14443A
Enquire Now
Be the first to review this item
 Write a review

HF 13.56 MHZ RFID Dry Inlay Tag is specially designed for tagging and tracking paper-based items. It is a thin, flexible tag that is embedded with a small antenna and a transponder chip. It can be affixed to a variety of surfaces, including paper, plastic, and metal. The tag can be read by an RFID reader, which transmits an RF signal to the tag, causing it to transmit its stored data. This data can include information such as a serial number, product code, or other types of identifier.

Application: Retail Stores, Libraries, Sports and Entertainment, Student identification, and tracking attendance.

Specifications
Operating Frequency 13.56 Mhz
Material Paper
Antenne Size 26mm x11mm
Wet Inlay Label 30x15mm(customized)
RFID Standard ISO14443A
Chip Type FM11RF08
Memory 1024 bits
Read Range 0–10cm
