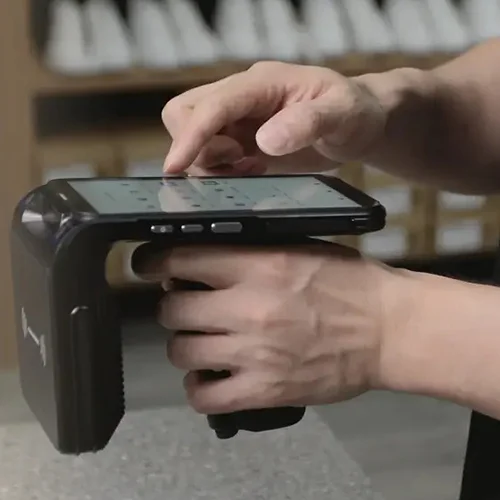

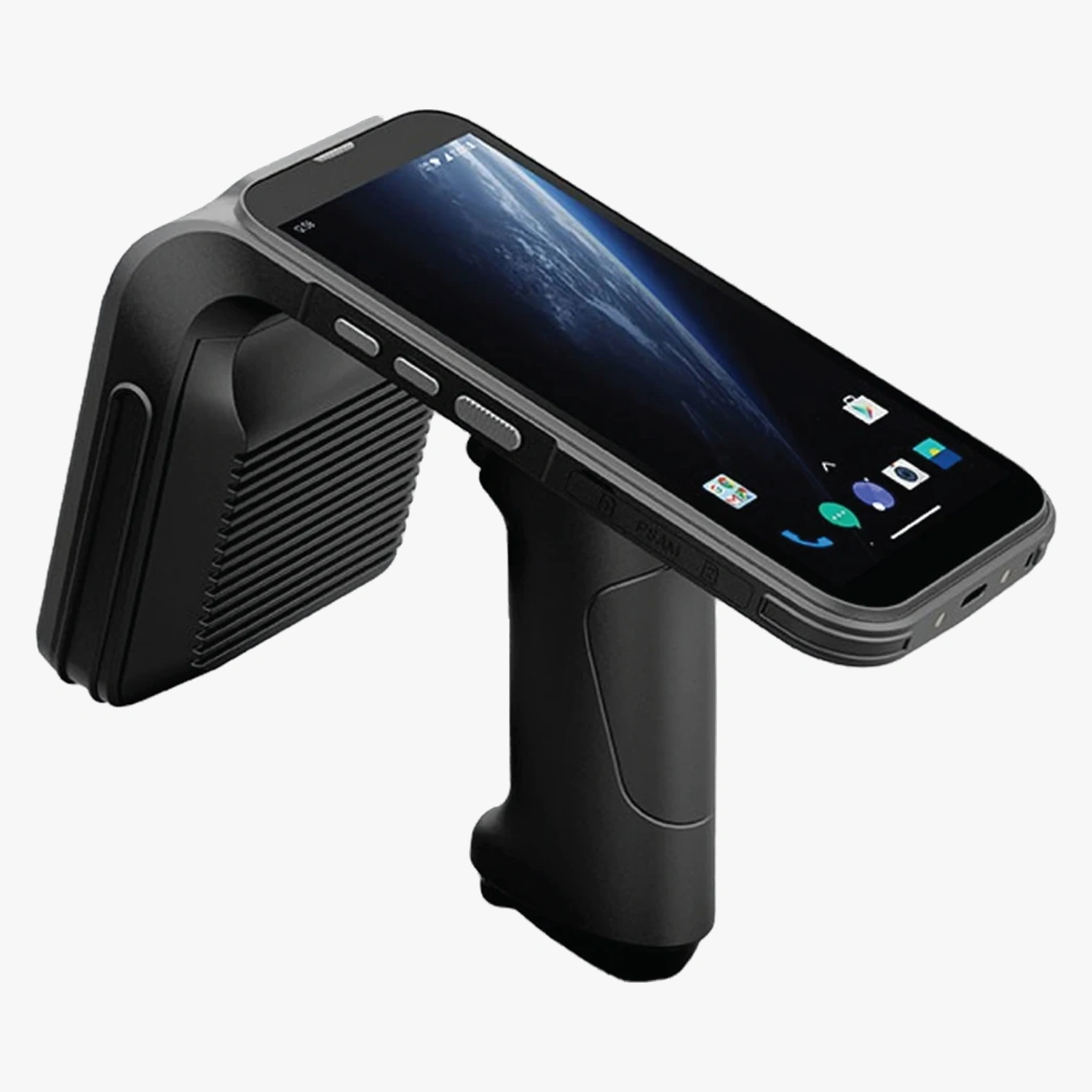

The C5 UHF RFID portable RFID reader by Chainway features Impinj E710/R2000, a high performing UHF module, Android 11, NFC, 2D Scanning and Fingerprint Scanning capabilities.

Write a review
Features
Operating Frequency: 865 - 867 Mhz, Ultra High Frequency (UHF)
Air Interface Protocol: ISO 18000-6C EPC Clas 1 Gen 2
Antenna: Circular polarization; 5dBic
Bluetooth: 5.0
Data Interface: USB, OTG
Enquire Now
Be the first to review this item
 Write a review

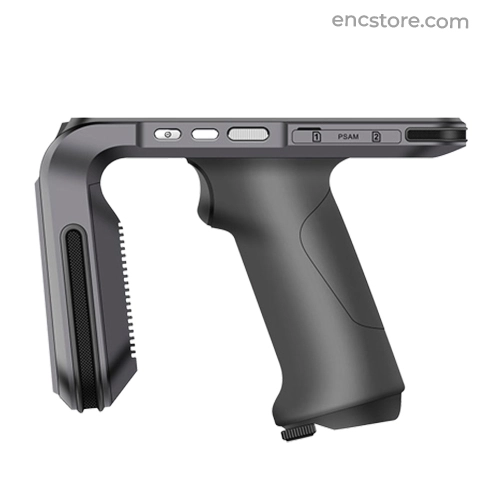

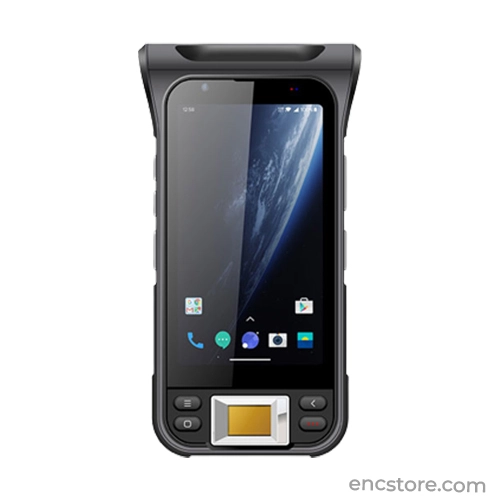

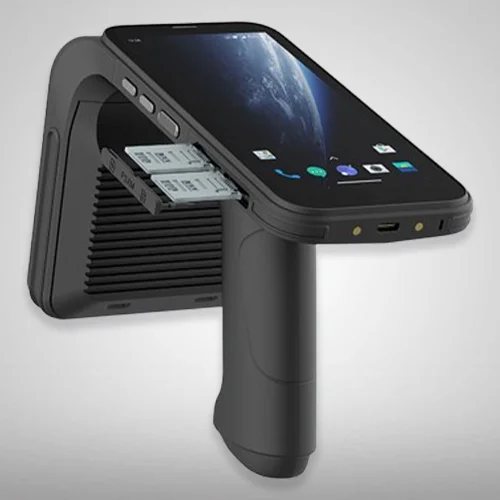

Get Chainway’s C5 UHF Handheld Portable RFID Reader which comes with an Impinj E710/R2000 UHF module for high performance and offers an integrated design with a 6 inch display for great user experience, more consistent UHF performance, and increased durability.

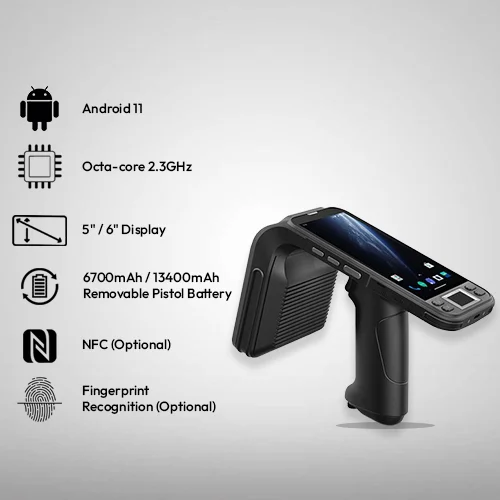

The UHF Handheld RFID reader provides industry-leading UHF performance and comes with Android 11 operating system, a Qualcomm Octa-core Processor, optional mass internal memory, and a 13400mAh removable battery. These RFID portable reader also support 2D scanning, NFC, fingerprint identification, IP 65 sealing and drop proof design which makes it suitable for all sorts of heavy performance.

These all-in-one UHF design RFID readers also support front and rear dual camera, allowing for barcode scanning for enhanced efficiency in retail and other commercial settings and can be availed at competitive prices from our website.



Applications of C5 UHF Handheld Portable RFID Reader

• Asset tracking and management

• Inventory management

• Retail and supply chain management

• Library Management

• Retail Management

• Document tracking

Specifications
Operating Frequency 865 - 867 Mhz, Ultra High Frequency (UHF)
Air Interface Protocol ISO 18000-6C EPC Clas 1 Gen 2
Antenna Circular polarization; 5dBic
Bluetooth 5.0
Data Interface USB, OTG
Dimensions 177mm x 80.2mm x 14.8mm
Battery 6700mAh / 13400mAh removable pistol battery
RAM+ROM 3GB + 32GB
Fastest Read Rate 950+ tags / sec (Circular Polarized)
IP Rating IP65
Operating System Android 11
Display 5-inch (Fingerprint) / 6-inch; 1280 x 720
Touch Panel Multi-touch panel, gloves and wet hands supported; Corning Gorilla Glass
Power 6700mAh / 13400mAh removable pistol battery, Built in 100mAh backup battery, supporting battery hot swap
Notification Sound, LED indicator, vibrator
CPU Cortex-A53 Octa-core, 2.3GHz
Storage Temperature -40 °C to 70 °C
Operating Temperature -20 °C to 50 °C
