The global RFID tag market is witnessing huge growth fueled by high demand in retail, healthcare, and supply chain as well as advancements in RFID technology, particularly in the design and application of RFID tag antennas across different frequency ranges: Low Frequency (LF), High Frequency (HF), and Ultra High Frequency (UHF).
Now, each of these RFID frequency bands has its unique challenges and advantages, whether it is antenna design, substrate materials, dielectric constant of the materials/assets being tagged, tuning effects, or interference issues with metals and liquids.
Dielectric Constant and RFID Tags: How it Matters?
The dielectric constant (or permittivity) of a material is a measure of its ability to store electrical energy in an electric field. In the context of RFID tag antenna design, the dielectric constant significantly influences the performance of the antenna. Materials with a high dielectric constant can reflect more RF energy, leading to the detuning of the antenna. This detuning makes it more challenging for the RFID system to effectively communicate with the tag. Detuning of the RFID tag antenna is one of the major causes of RFID tags being inefficient around metals and liquids.
Tag Antenna Design across Frequency Bands
1.Low Frequency (LF) RFID

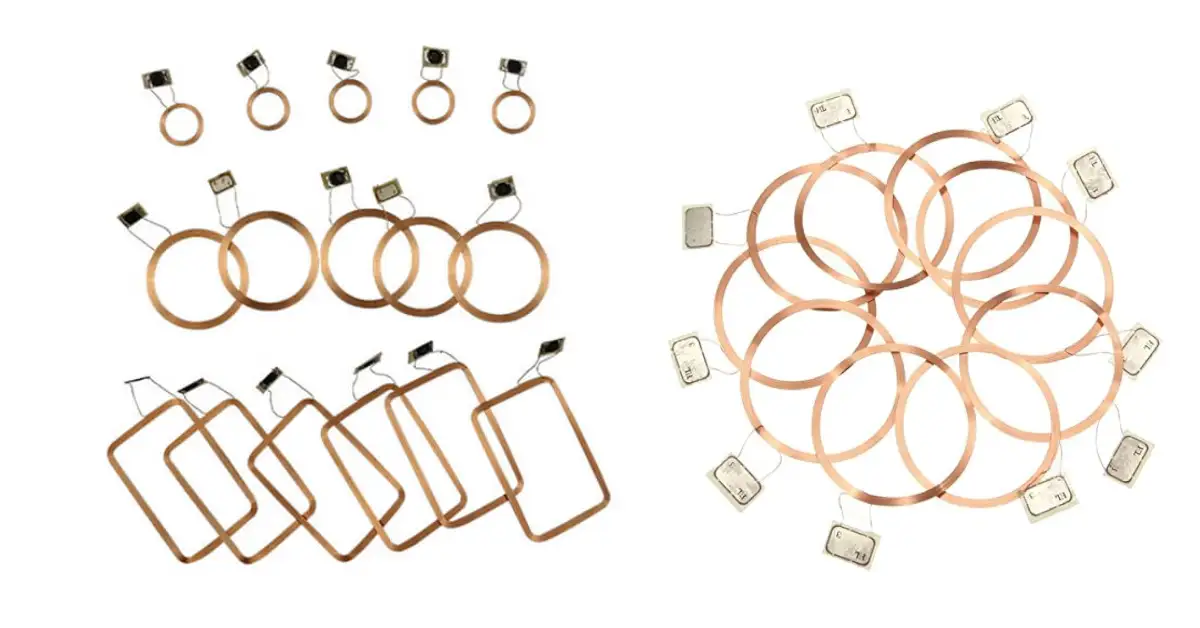

LF RFID systems operate typically between 125 kHz and 134 kHz. The antenna designs in this frequency range are generally larger, as the wavelength is longer. LF tags often employ loop antennas, which can be effectively realized using copper wire or printed circuit board (PCB) traces.
Substrate Dielectric Constant in LF Tags
The substrate used in LF antennas generally has a high dielectric constant, often around 2.5 to 4.0, which helps in miniaturizing the size of the antenna while maintaining performance. Materials like FR-4, which has a dielectric constant of about 4.4, are commonly used.
2. High Frequency (HF) RFID
HF RFID systems operate at 13.56 MHz. The antennas in this range can be more compact compared to LF due to the shorter wavelength. Common designs include loop and dipole antennas, which can be fabricated on flexible substrates or PCBs.
Substrate Dielectric Constant for HF RFID Label
HF antennas typically use substrates with a dielectric constant ranging from 2.0 to 4.0. Materials like Taconic (with a dielectric constant of around 2.2) are favored for their low-loss characteristics.
EnCstore Meets All Your RFID Needs!
Get best quality RFID Readers, RFID Tags, Antennas and Printers from top brands in AIDC industry.
Visit Our RFID Store
3. Ultra High Frequency (UHF) RFID

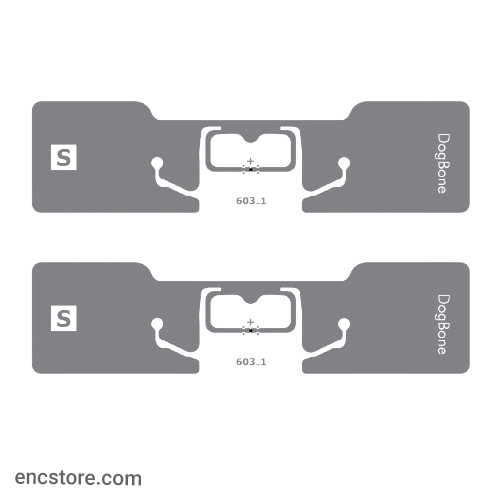

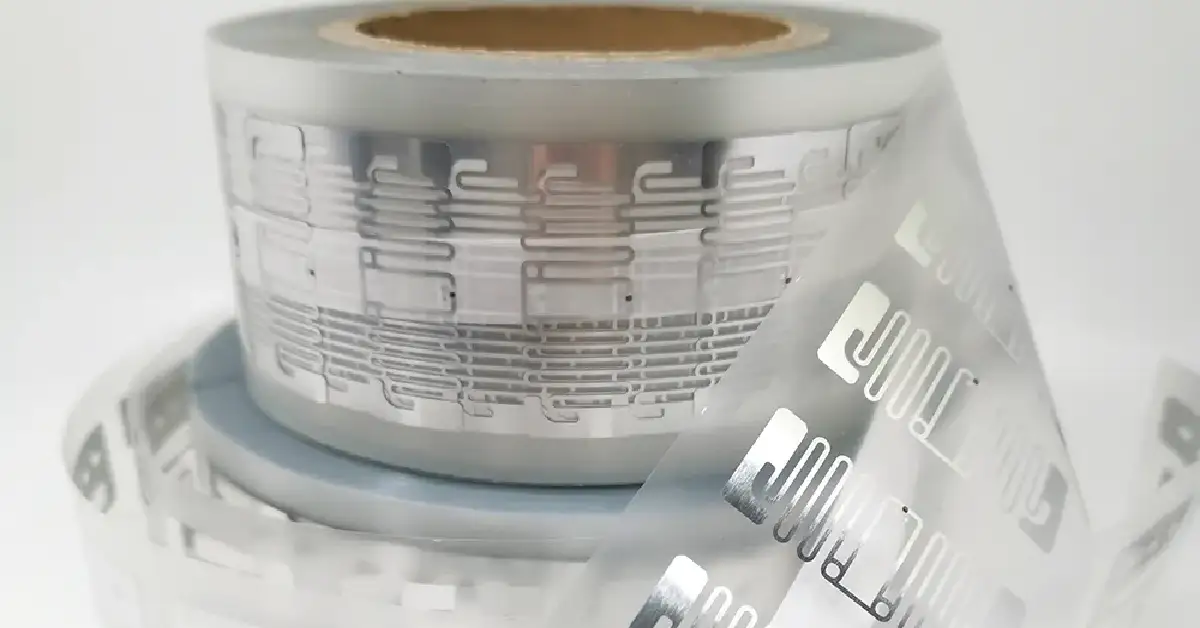

UHF RFID systems range from 860 MHz to 960 MHz globally. Tag antenna designs in this range can be quite diverse, including dipole, patch, and slot antennas, which can be printed directly onto substrates or fabricated as separate elements.
Substrate Dielectric Constant for UHF RFID Label
UHF RFID antennas often utilize substrates with dielectric constants between 2.0 and 3.5. Low-loss materials such as Rogers RT/Duroid (with dielectric constants around 2.2) are commonly employed to enhance performance.
Detuning in RFID Tags
Detuning in an RFID antenna occurs when an antenna's resonance frequency shifts due to changes in the surrounding environment or components, which can affect the tag's performance.
General Mechanism of Detuning
Detuning can occur from various factors, including changes in the dielectric environment, physical obstructions, or the presence of additional electronic components. The antenna's impedance and resonant frequency are altered, leading to decreased read range and efficiency.
How UHF RFID Tag Antenna Detunes?
UHF RFID tags are particularly sensitive to detuning effects due to their smaller physical size and higher operational frequencies. The detuning can occur from the presence of nearby materials, such as metal or liquid, which can significantly alter the electromagnetic field around the antenna.
Detuning occurs when the impedance of the RFID tag antenna changes due to the surrounding dielectric materials. This is particularly problematic when the antenna is embedded in or mounted on materials with high dielectric constants, such as plastics or rubber. The antenna is designed to operate at a specific frequency, and when the dielectric properties of the surrounding material alter the effective impedance, the antenna may no longer resonate at its intended frequency.
The detuning effect can lead to:
1.Reduced read range
The tag may not respond effectively to the reader's signal.
2. Increased power consumption
The tags may require more energy to operate, which is critical for passive RFID tags that rely on energy harvested from the reader's signal.
RFID Interference Issues around Metals and Liquids
Interference from metals and liquids is a critical concern in the deployment of RFID systems, particularly in UHF applications.
A. Metal Interference in RFID Tag Performance
Metals reflect RF signals, which can lead to multipath interference, where the signal takes multiple paths to reach the reader. This can cause constructive and destructive interference that affects the readability of tags. Strategies to mitigate these effects include:
1.Placement of the tag
Ensure that tags are not placed directly on metal surfaces. RFID mount-on metal tags or RFID anti-metal tags are used when tagging metal assets since anti-metal tags have superior tag design that overcomes interference from metals.
2. Antenna Design
Employing circularly polarized antennas or designs that minimize the effects of reflected signals is helpful.
B. Liquid Interference in RFID Tag Performance
Liquids have a high dielectric constant, which causes RF energy to be absorbed, significantly impacting the performance of UHF tags. Thus RFID tagging of liquids requires certain mitigation strategies including:
1.Tag Design
Designing tags specifically for use in wet environments, often using coatings or encapsulations that protect the tag and reduce absorption.
2. Frequency Selection
Operating at frequencies that are less susceptible to liquid absorption can also be advantageous, with some applications moving to HF or LF where feasible.
Prevention of Detuning in Advanced UHF RFID Tag Design
To mitigate the effects of detuning in UHF RFID tag antennas, several advanced design strategies can be employed:
1. Impedance Matching

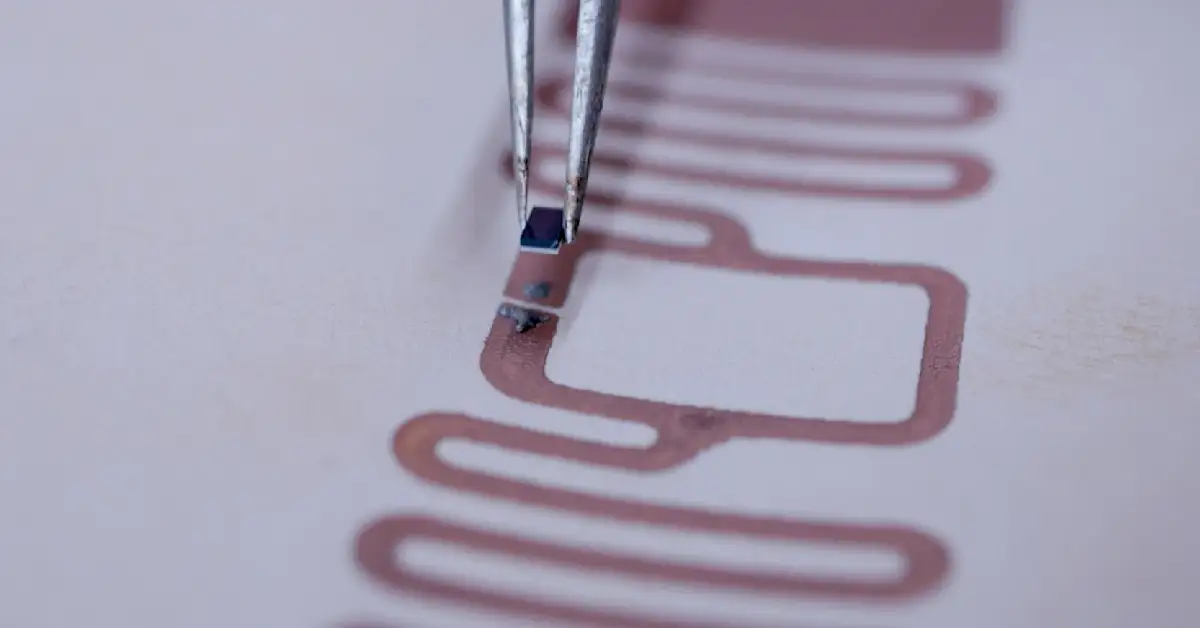

Designing the antenna to ensure proper impedance matching with the RFID chip is crucial. It can involve using techniques such as T-shaped stubs or meandered line designs to adjust the antenna's characteristics to compensate for the surrounding dielectric.
2. Material Selection
Choosing substrates with lower dielectric constants can help reduce detuning. For instance, using flexible materials like polyester with a dielectric permittivity of around 3.5 can be beneficial.
3. Adaptive Design Techniques
Utilizing simulation tools to predict how the antenna will perform in various dielectric environments allows designers to optimize the antenna's shape and size before production. Adjusting the antenna's geometry to maintain performance across different materials is one such technique.
4. Robust Antenna Structures
Designing antennas that can maintain performance across a range of dielectric materials is essential. You can create antennas that are less sensitive to environmental changes, ensuring they can function effectively regardless of the mounting surface.
5. Testing and Iteration
Prototyping and testing antennas in real-world conditions can help identify detuning issues early in the design process, allowing for iterative improvements.
To conclude, the design of RFID tag antennas for LF, HF, and UHF RFID systems involves a nuanced understanding of various factors, including substrate dielectric properties, detuning mechanisms, and interference challenges presented by metals and liquids. The interplay between antenna design and environmental factors remains a critical frontier in the quest for more efficient and reliable RFID solutions. Understanding the dielectric properties of surrounding materials is also crucial in optimizing RFID tag performance in indoor and outdoor applications.
