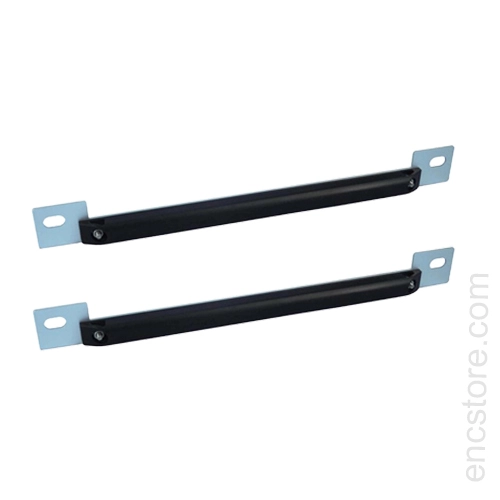

Anti Metal Electronic UHF RFID Vehicle License Plate Tag

Ultra High Frequency(865–867 MHz), Long Range UHF RFID Car Truck vehicle License Plate Tag for Auto Parking Lot System

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Read Range: Up to 10m
Chip Type: Impinj Monza 4QT
EPC Memory: 96 bits
Enquire Now
Be the first to review this item
 Write a review

We offer Anti-metal Electronic RFID vehicle License Plate tags which has a long-range UHF frequency of 865–867 MHz. It uses ISO 18000-6C EPC Class 1 Gen 2 (Pulse Interval Encoding (PIE) for communications between readers and tags) as a communication protocol. It is well-suited for Electronic toll-ways, Vehicle management, and Auto Parking Lot Systems. These RFID vehicle tags store their data in the microchip, which contains the information of a tagged object.

The RFID Vehicle Tag has an effective reading distance of 15 meters (Reader Dependent), and they are manufactured for handling harsh weather conditions and extreme temperature fluctuation ranging between -45 to 70 degrees Celsius. It required ABS (Acrylonitrile Butadiene Styrene) and Aluminum metal to manufacture these tags. Most RFID tags can function for more than 20 years under normal conditions.

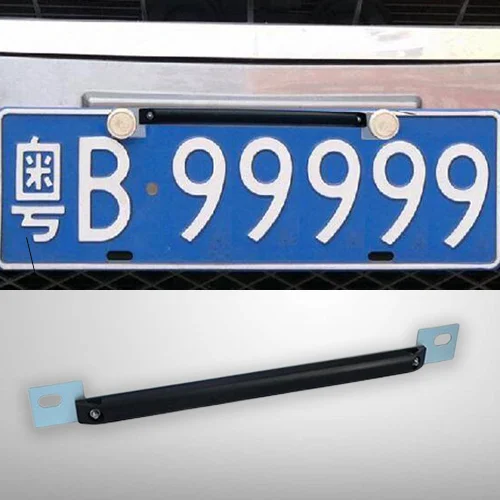

The RFID Vehicle tag has an installation with screws that can be placed on the object's surface. Its applications include continuous toll collecting, vehicle management, intelligent urban transportation, and other smart fields.

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Read Range Up to 10m
Chip Type Impinj Monza 4QT
EPC Memory 96 bits
User Memory 512 bits
Write Cycle Endurance 100,000 cycles
Data Retention 50 Years
Tag Material PCB + ABS Case + Aluminium

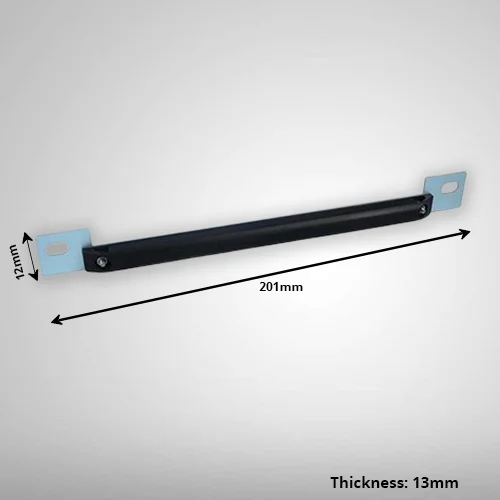

Tag Size 201mm(L) x 12mm(W) x 13mm(T)
Applicable Surface Car License Plate
Attachment /Mounting Method Screw
Operating Temperature -30°C to +85°C
Storage Temperature -40°C to +100°C
