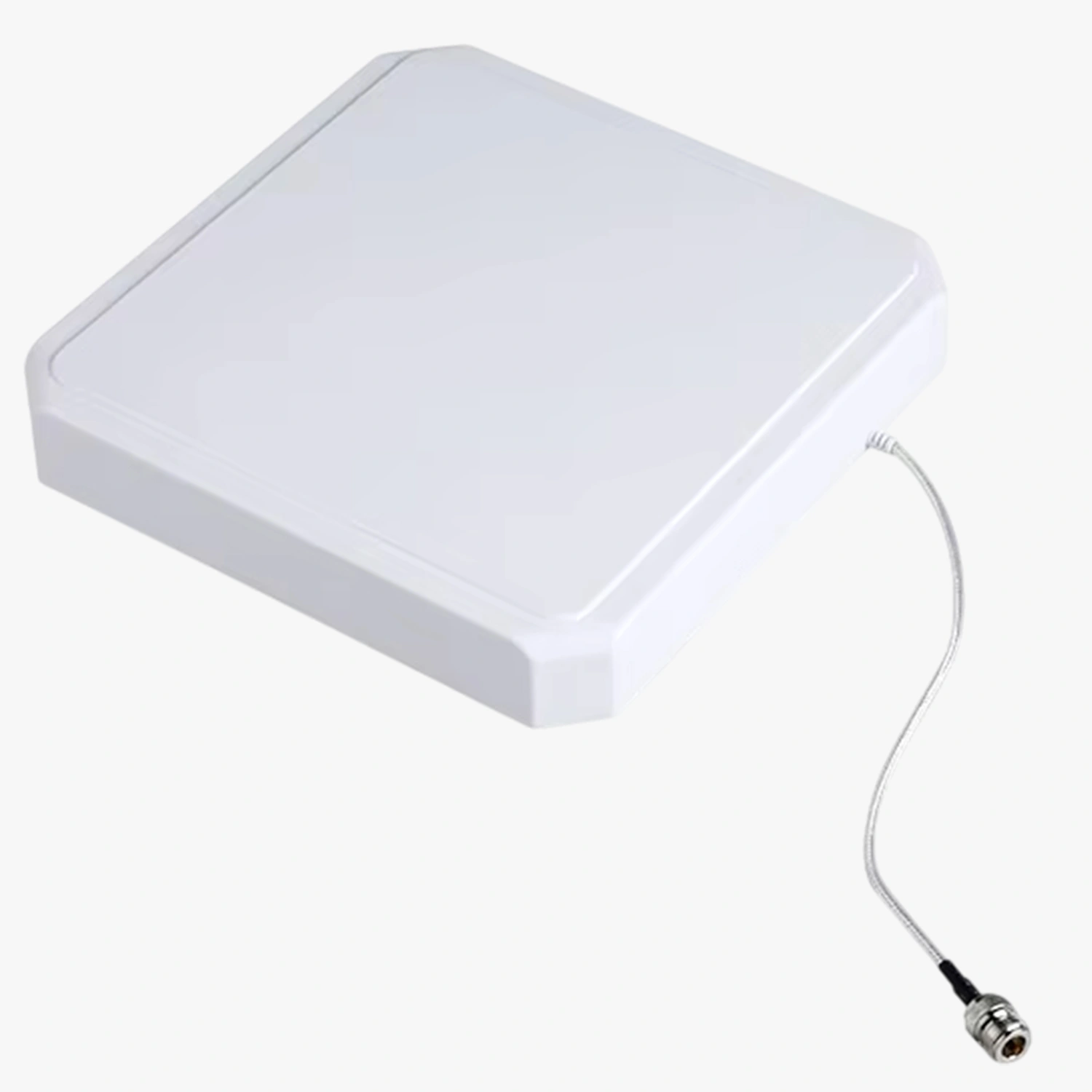

ANT910: 9dBi UHF RFID Antenna, Circular Polarized, 867MHz

9dBi UHF RFID Antenna works on 865 -867 MHz Frequency, offers Circular Polarization, 9dbi antenna gain, N-female Connector, 100W Max Power, long Read Range UHF RFID antenna for warehouses

Write a review
Features
Operating Frequency: 865 - 867 Mhz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Connector: N-Type Female
Dimensions: 255mm x 255mm x 37mm
Gain: 9dBi
Enquire Now
Be the first to review this item
 Write a review

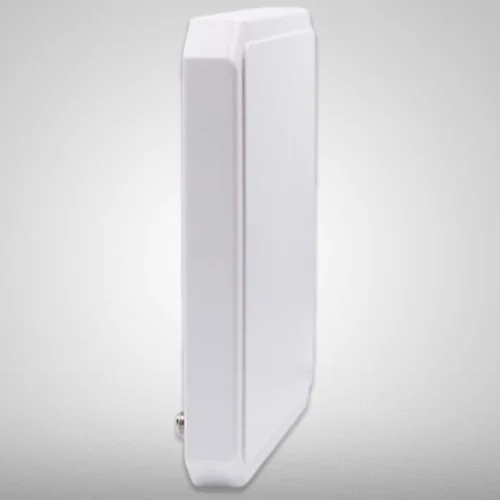

The 9dBi UHF Circular Polarized RFID Antenna is a powerful, wide-band antenna designed for accurate and reliable tracking of inventory and assets across various environments. This advanced antenna operates efficiently within the 865-965 MHz frequency range, making it compatible with the Indian UHF frequency band (865-867 MHz) as well. With circular polarization, it ensures strong signal performance regardless of tag orientation. Its compact and sleek design, measuring 255mm x 255mm x 37mm, allows easy installation on walls, ceilings, or poles. The antenna features an N-type female connector with a rear connection for secure and flexible mounting options.

Specifications
Operating Frequency 865 - 867 Mhz
Communication Protocol ISO 18000-63 and EPCglobal Gen2v2

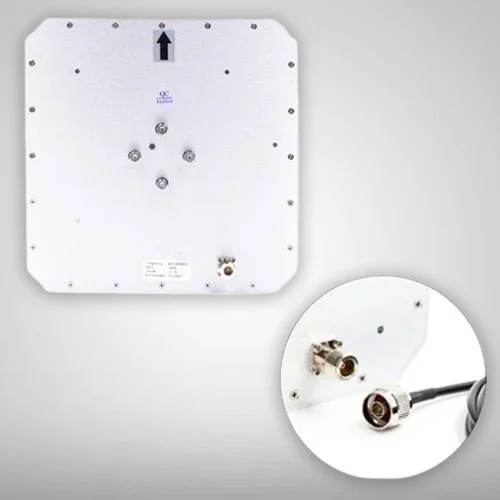

Connector N-Type Female
Dimensions 255mm x 255mm x 37mm
Gain 9dBi

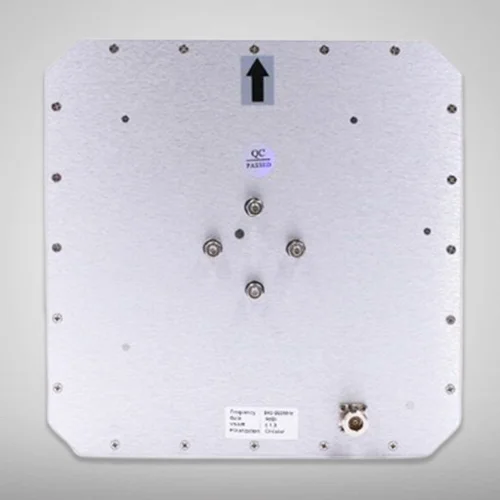

Connector Location Rear
Weight 2.5 lbs. / 1.13 kg
Casing/Materials Aluminum with white plastic cover
IP Rating IP67
