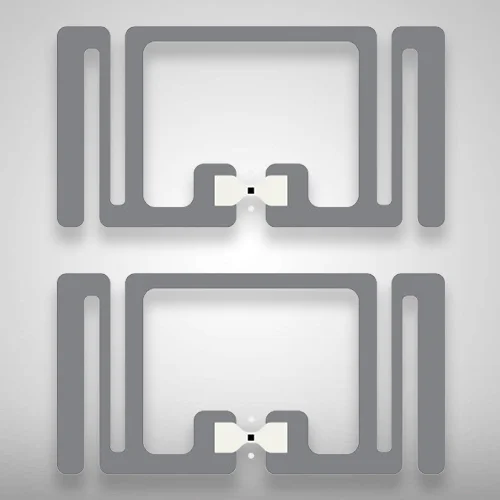

AD-173 U8 UHF RFID Inlay and Tag for Apparel Management

The AD-173 UHF RFID Inlay and Tag, powered by NXP UCode8, operate at 865-867MHz frequency, high-performance solution for tagging small apparel items, offer 27mm x 14 mm size and excellent read range.

Write a review
Features
Brand: AD Corp
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Chip Type: NXP UCode 8
EPC Memory: 128 bits
TID Memory: 96 bits
Enquire Now
Related Products
UHF Dry Inlay RFID Tag
R6/R6-P RFID UHF Dry Inlay
Smartrac AD-130U8 UHF RFID Wet Inlay, NXP UCode8
UHF RFID 9640 Wet Inlays Tags, Alien Higgs9, Size: 98mmx12mm
RFID UHF Dry Inlay Tags - Monza 4E
Be the first to review this item
 Write a review
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Chip Type NXP UCode 8
EPC Memory 128 bits
TID Memory 96 bits
Tag Material Wet Inlays/Paper Label/Polyester Label
Antenna Size 27mm(L) x 14mm(W)
Die cut dimensions 30mm(L) x 18mm(W)
Applicable Surface Apparel, Sunglasses, Small Boxes
Attachment /Mounting Method Adhesive
Operating Temperature -40°C to +85°C
