UHF RFID Tire Mold tags for Tire Trackings works on 860-960MHz frequency and offers long read range up to 5 meters. High performance RFID tire tags suitable for tire factory, car manufacturers

Write a review
Features
Operating Frequency: FCC: 902-928MHz ETSI: 865-868 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 5m
Chip Type: NXP UCode 8
EPC Memory: 128 bits
Enquire Now
Be the first to review this item
 Write a review

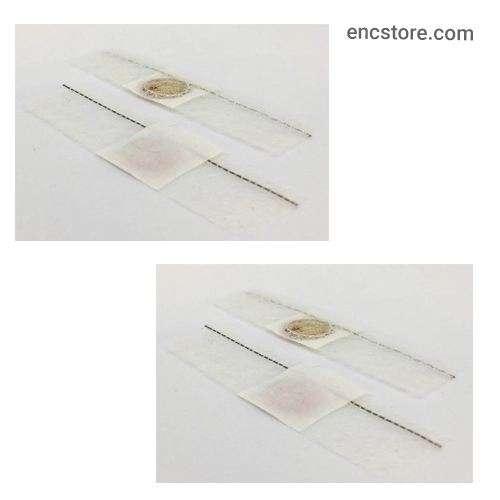

The PID-TR tag UHF RFID Tire Mold tag for tire tracking is designed to be embedded into the tire mold during the manufacturing process itself. With their durable construction and adhesive backing, these tags can be easily affixed to each tire, providing a unique identification number that can be read by RFID readers from a distance of up to 5m, and can be tracked to prevent tire theft and cloning. These tire tracking tags operate on 860-960MHz Ultra High Frequency and follow the ISO 18000-63 and EPCglobal Gen2v2 communication standards.

EnCstore offers these TR UHF RFID Tire Mold tags that offer high performance, and work well with all kinds of tyre molds. Whether you are managing a small fleet or a large-scale operation, our UHF RFID Tire Tracking Tags are the ideal solution to optimize your tire management processes and enhance overall productivity.

These tags offer high read range and fast data capture capabilities and enable quick and efficient tire identification, reducing labor costs and improving operational efficiency in tire manufacturing plants.

Specifications
Operating Frequency FCC: 902-928MHz ETSI: 865-868 MHz
Communication Protocol ISO 18000-63 and EPCglobal Gen2v2
Read Range Up to 5m
Chip Type NXP UCode 8
EPC Memory 128 bits
Write Cycle Endurance 100,000 cycles
Data Retention 50 Years
Tag Material Conductive wire

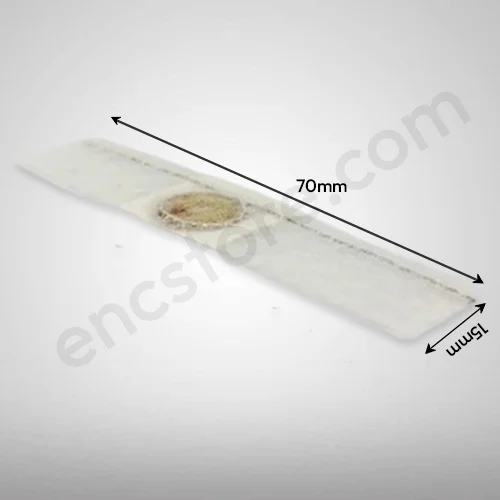

Tag Size 70mm(L) x 15mm(W) x 1mm(T)
Antenna Size 70mm(L) x 8mm(W)
Applicable Surface Tires
Attachment /Mounting Method Embedding
Operating Temperature -35°C to +85°C
Storage Temperature -35°C to +85°C
