RFID Touch Screen UHF Tablet Reader

Ultra High Frequency, 865-868 MHz, Lightweight and Portable, upto 200 tags/sec, 8000 mAh battery, IP65 Rating, 1D/2D Performance, High-performance,

0 reviews

Write a review

Operating Frequency:	865 - 867 Mhz, Ultra High Frequency (UHF)
Air Interface Protocol:	ISO 18000-6C EPC Clas 1 Gen 2
Antenna Type:	Linear polarization (1.8dBi) \| Circular polarization (4dBi)
Read Range:	>7m (linear polarization); >15m (circular polarization)
Dimensions:	250.8 x 152.0 x 15.0 mm

Be the first to review this item

Write a review

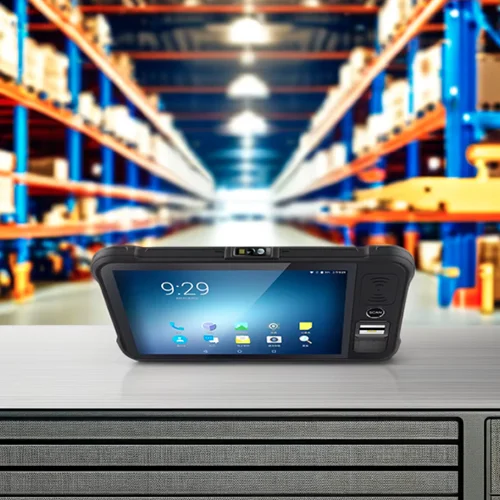

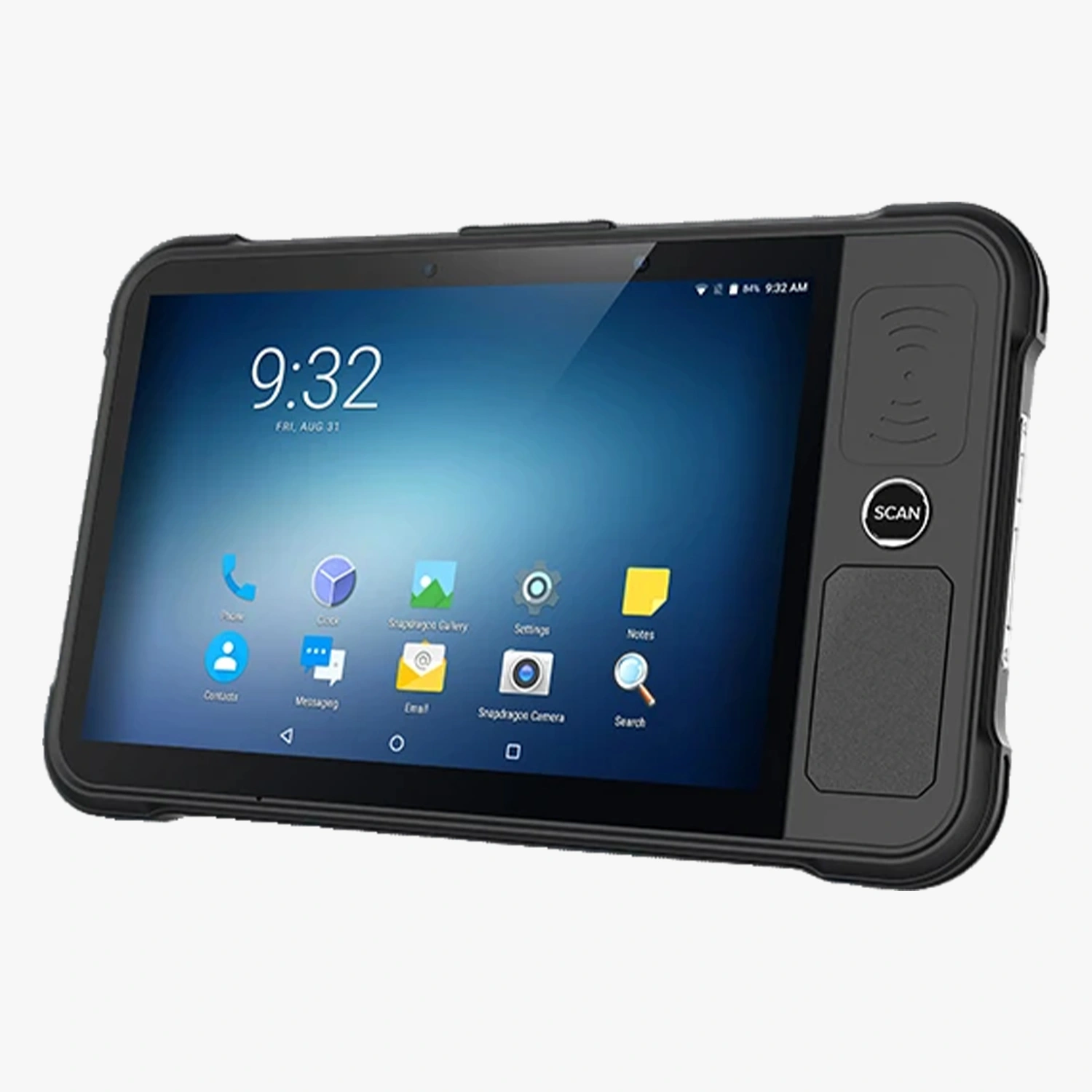

RFID Touch Screen UHF Tablet Reader is a rugged touchscreen device designed for the most demanding applications in the warehousing, manufacturing, and retail industries. This device is equipped with an 8-inch HD touchscreen, 800 MHz processor, Windows or Android operating system, and a 3D Dual RFID reader. It is IP55 dust and water-resistant and also features an impact and drop-rated casing to ensure maximum protection in extreme conditions. With advanced scanning capabilities, this device is capable of capturing UHF RFID tags, and barcodes, and also supports image capture. It is ideal for warehousing, inventory, and asset tracking, as well as store inventory and pricing updates.
Specifications
Operating Frequency	865 - 867 Mhz, Ultra High Frequency (UHF)
Air Interface Protocol	ISO 18000-6C EPC Clas 1 Gen 2
Antenna Type	Linear polarization (1.8dBi) \| Circular polarization (4dBi)
Read Range	>7m (linear polarization); >15m (circular polarization)
Dimensions	250.8 x 152.0 x 15.0 mm
Touch Panel	Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Display	8” IPS LTPS 1920 x 1200 / IPS LTPS 1280 x 800
Interface	USB 3.0 Type-C, OTG
Battery	8000 mAh
Processor	Qualcomm 1.8 GHz Octa-core
Memory	3 GB + 32 GB / 4 GB + 64 GB
IP Rating	IP65
Bluetooth	Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
Reading Rate	> 200 tags/sec
Power	1W (30dBm, +5dBm to +33dBm adjustable)
Barcode	1D & 2D
Front Camera	8 MP
